OREI 8K 1x8 HDMI Splitter With HDR10 , Downscaler & EDID management
Key Features:
-
HDMI 2.1 and HDCP 2.3 compliant
-
48Gbps FRL and 18Gbps TMDS video bandwidth
-
Video resolutions up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
-
VRR, ALLM, QMS, QFT, SBTM support
-
HDR/10/10 , Dolby Vision, and HLG pass-through
-
LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through from HDMI
-
8K to 4K or 8K/4K to 1080P auto downscaling on all outputs
-
Automatic HDR to SDR Conversion on all outputs
-
Advanced EDID management
-
Compact design for easy and flexible installation

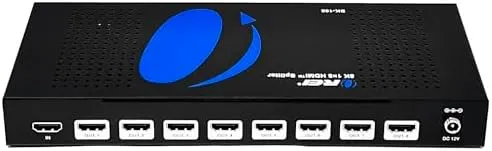

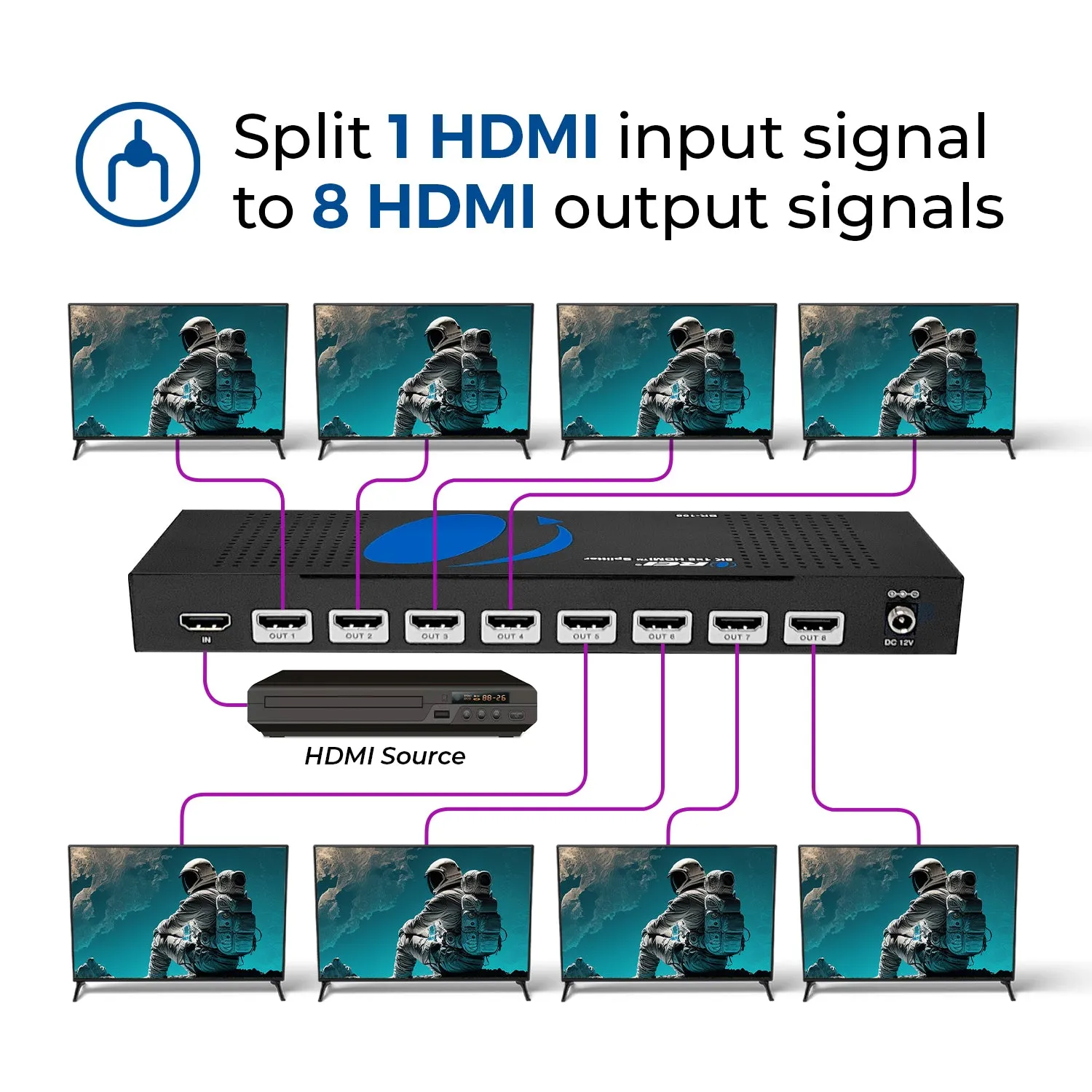

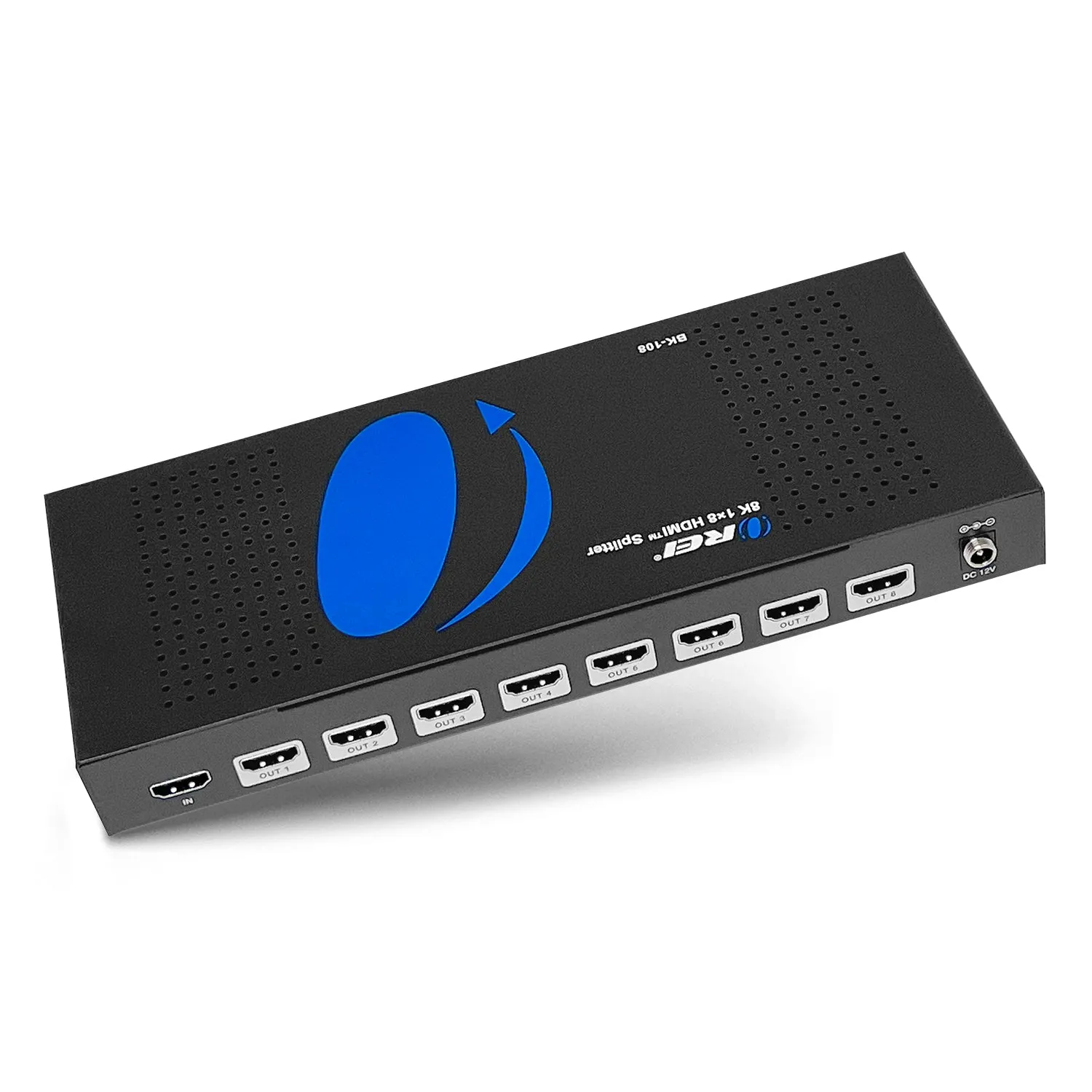

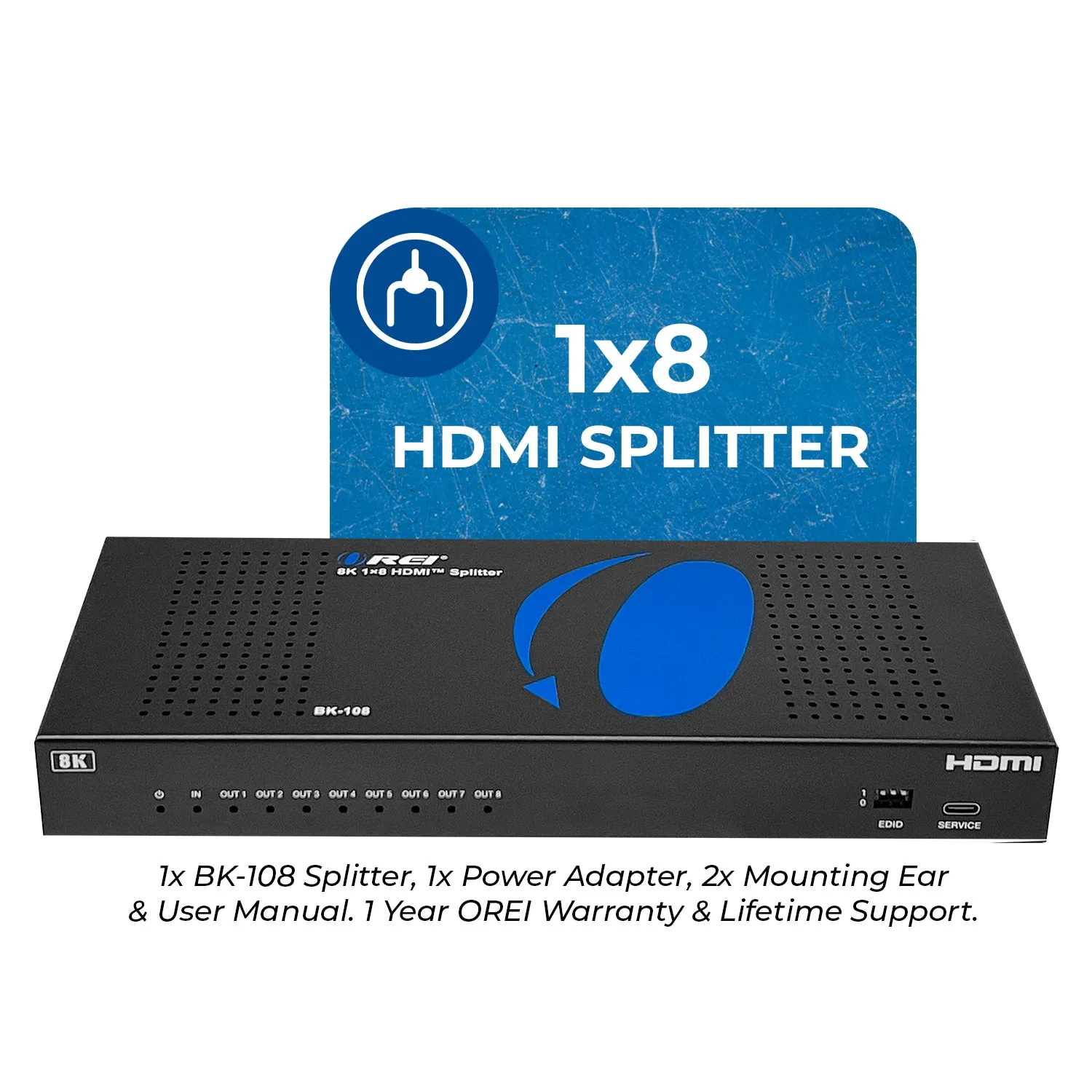

The BK-108 is a 1 in 8 out HDMI Splitter with downscaling. It is compliant with HDMI 2.1 and HDCP 2.3 standards, it comes with a bandwidth of up to 48Gbps FRL and 18Gbps TMDS. It supports video resolutions up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4, with HDR10 , Dolby Vision, and HLG pass-through. This splitter can downscale 8K to 4K and 4K to 1080p across all outputs and converts HDR to SDR for displays that do not support HDR. It features advanced EDID management with 3 DIP switches and audio pass-through for formats up to Dolby Atmos & DTS:X. Compact design with an easy installation. Perfect for commercial and personal setups.
[shortdes]
-
1 in 8 out 8K HDMI splitter With Downscaling
-
Resolutions up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4
-
8K to 4K and 8K/4K to 1080p Downscale
[/shortdes]
[tab]
CONNECTIVITY

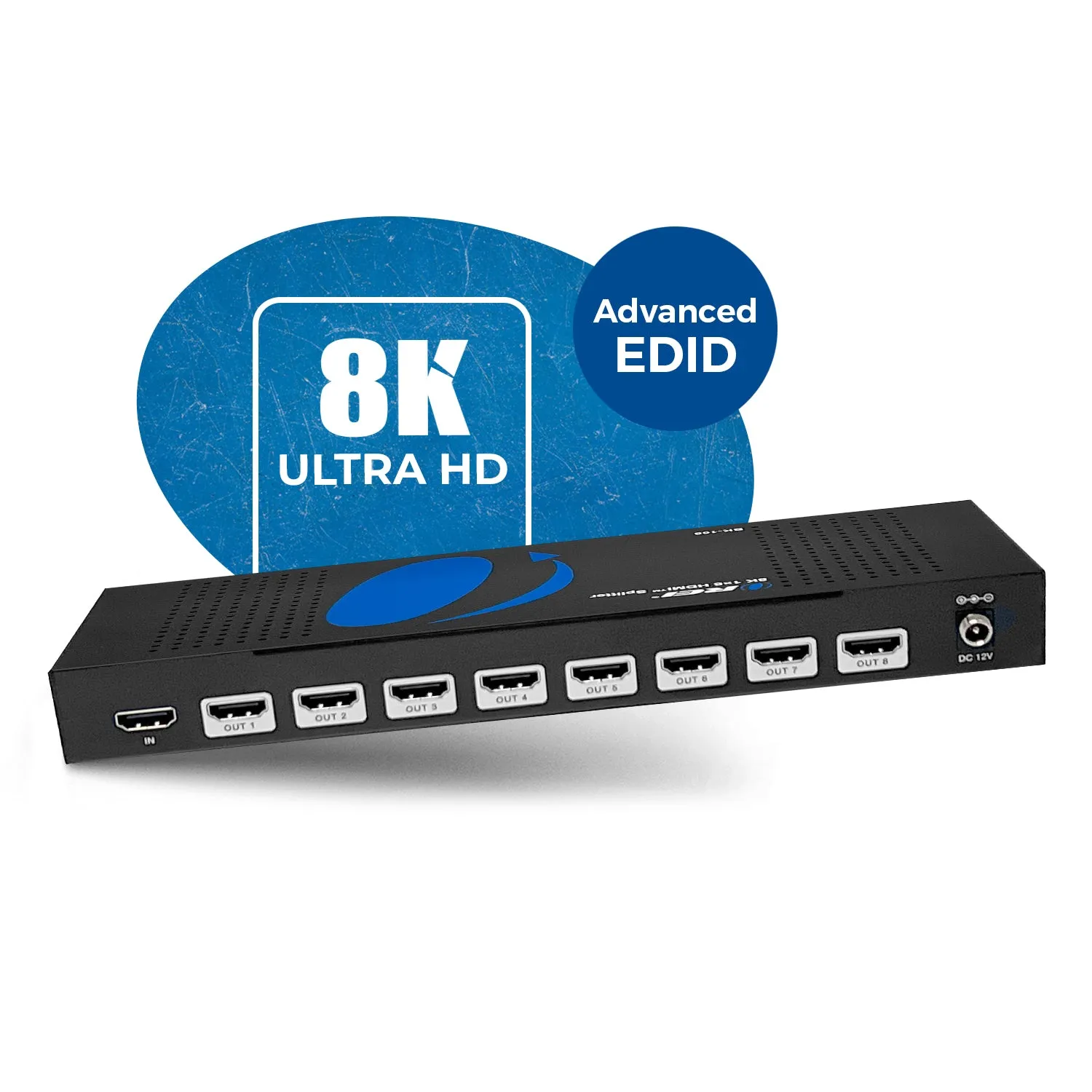

| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 8 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1× SERVICE [USB-C, Update port] |
PACKAGE CONTENTS
| 1x BK-108 HDMI Splitter |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.1 | We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 8K@60Hz: | 10 Feet |
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 48Gbps FRL & 18 Gbps TMDS |
| Video Resolutions: | Up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4, 4K@60Hz, 2K@120Hz, 2K@60Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | No |
| Downmix: | No |
| Downscale: | Yes |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
AUDIO SUPPORT
| HDMI Audio Formats: | LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio |
COMPLIANCES
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
POWER
| Power Consumption: | 12.2W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 12V/2.5A |

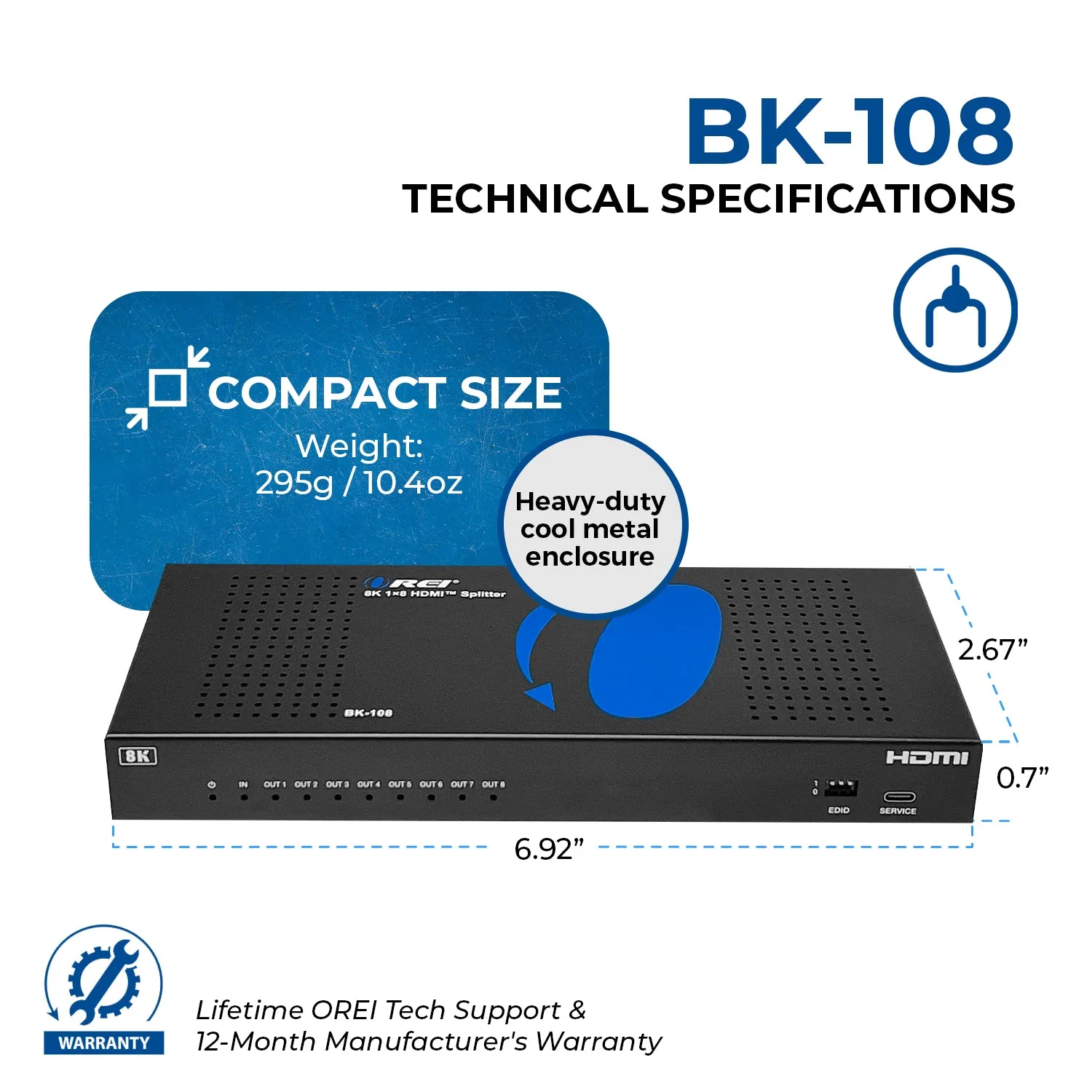

DIMENSIONS & WEIGHT
| Length: | 176mm / 6.93in | |
| Width: | 68mm / 2.68in | |
| Height: | 18mm / 0.71in | |
| Weight: | 295g / 10.41oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned ON.
