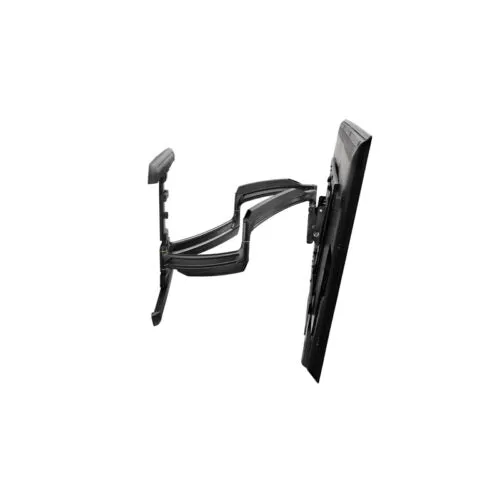

A lightweight, low-profile full-motion wall display mount for TVs 42-75″. Easily installs with one person by mounting the top rail and sliding on the assembly.

• Ultra Low Profile Sleek design collapses to 1.5″ (38 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma
• Extends up to 25″ (635 mm) Full extension maximizes viewing potential
• Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt to achieve optimal viewing angles
• Centerless™ Lateral Shift Post-installation lateral shift allows up to 16″(406 mm) of adjustment for limitless centering capability
• Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation
• Post Installation Height Adjustment A total of 1″ (25mm) of post installation height adjustment allows for perfect screen placement and alignment

Specification:

• Certifications UL Listed, OSHPD Approved
• Color Black
• Lateral Shift16″ (406 mm)
• Manual Height Adjustment1″ (25 mm)
• Maximum Extension25″ (635 mm)
• Maximum Screen Thickness3″ (76 mm)
• Minimum Depth1.5″ (38.1mm)
• Mounting Pattern Compatibility (Universal Versions)100 x 100mm – 800 x 400mm
• Pivot Numerical Value±90° (depending on screen width)
• Post-Installation Leveling RollYes
• Shipping Weight 55 lbs (24.95 kg)
• Solution Type Universal
• Tilt ° , – 15°
• Typical Screen Sizes 42 – 75″
• Wall Stud Compatibility In16″ (406 mm)
• Weight Capacity 125 lbs (56.7 kg)
• Orientation Landscape
