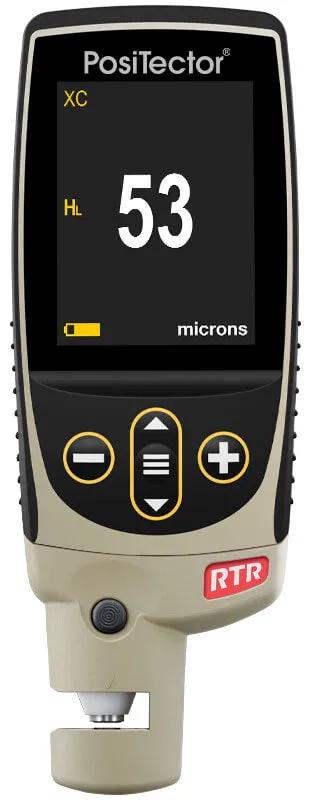

PosiTector® RTR H Replica Tape Reader

Manufacturer: DeFelsko

Part #: RTR HX

Description: Electronic Surface Profile Gage for Blasted Steel and Textured Coatings

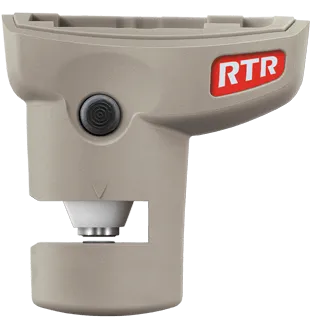

Digital spring micrometers measure and record surface profile parameters using Testex Press-O-Film™ replica tape—producing a more accurate peak-to-valley height measurement.

Ready to measure—no calibration adjustment required for most applications
NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
Certificate of Calibration showing traceability to PTB included (Long Form)

Conforms to ASTM D4417, ISO 8503-5, NACE SP0287, SSPC-PA 17, SSPC-SP5, SP6, SP10, SP11-87T, and others

Simple

Measures peak height (HL)
Automatically subtracts the 50.8 μm (2 mils) incompressible film from all readings
Minimizes inspector workload by reducing the number of replicas needed to ensure accuracy
NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
NEW On-gage help explains menu items at the touch of a button
RESET feature instantly restores factory settings

Durable

NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
Rugged indoor/outdoor instrument—ideal for field or shop use
NEW Ergonomic design with durable rubberized grip
Shock-absorbing, protective rubber holster for added impact resistance
Two year warranty on gage body AND probe

Accurate

Produces a more accurate peak-to-valley height measurement. See linearized peak height (HL)
Certificate of Calibration showing traceability to PTB included (Long Form)
Conforms to national and international standards including ISO 8503-5, ASTM D4417 Method C, NACE RP0287 and SSPC-PA17

Versatile

PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
Mils/Microns switchable
Selectable display languages
NEW Auto rotating display with Flip Lock

Powerful

Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
NEW Screen Capture—save 100 screen images for record keeping and review
NEW Instant-on feature quickly powers up the gage if recently powered down
NEW Up to 30% longer battery life
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
PosiSoft USB Drive—stored readings and graphs can be accessed using universal
PC/Mac web browsers or file explorers. No software required.
Every stored measurement is date and time stamped
Software Solutions for viewing, analyzing & reporting data
Software Updates via web keep your gage current

Standard Models

Includes ALL features as shown above plus...
NEW Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown above plus...
NEW Storage of 250,000 readings from multiple probes in up to 1,000 batches

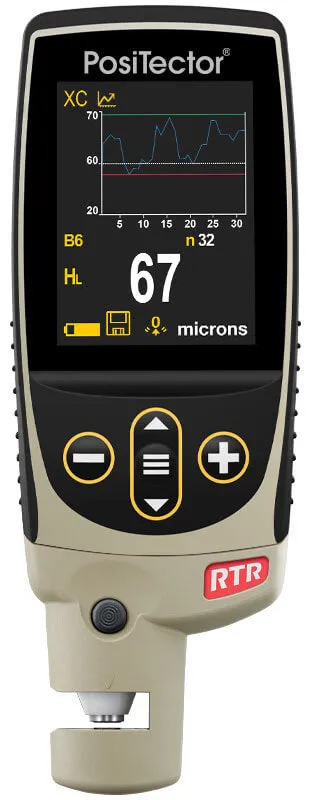

Live graphing of measurement data
NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
Bluetooth 4.0 Technology for data transfer to a mobile device running the
PosiTector App or optional portable printer. BLE API available for integration into third-party software.
Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
