Product Details
＋

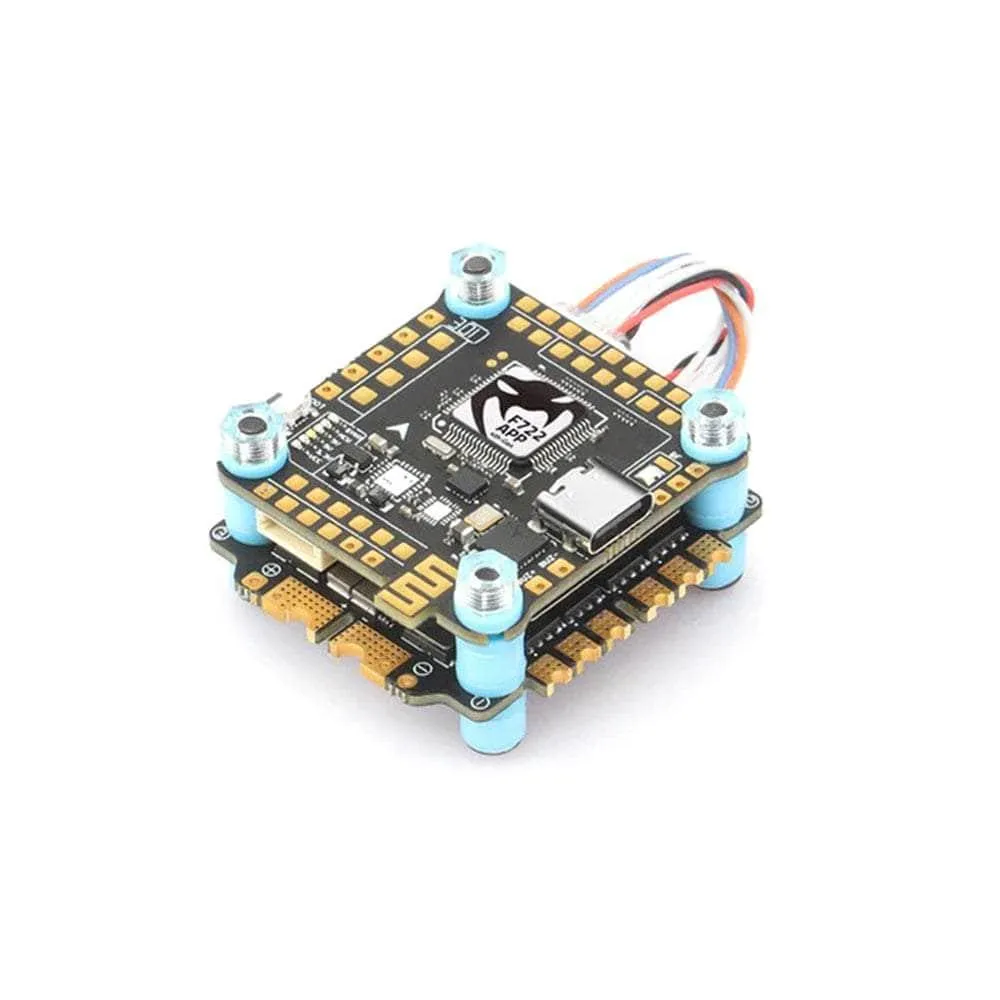

This stack pairs the Mamba MK4 F722 APP FC and the Mamba F55_128k 55A 4in1 ESC. With multiple UARTS and BECS, this stack can run all the peripherals you could ever want with ease.
Browse our and our !
Specifications

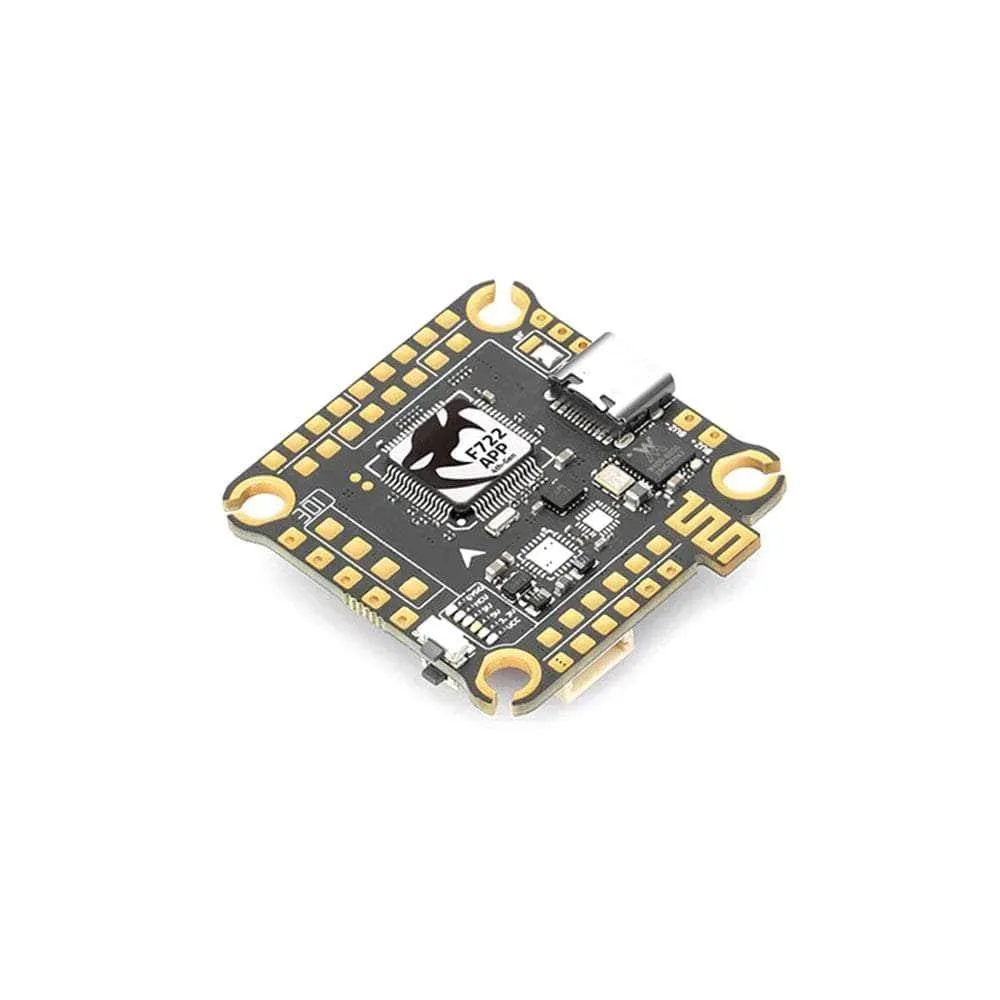

Mamba MK4 F722 APP
- Voltage Input: 3-6S
- MCU: STM32F722
- Gyro: ICM42688P
- OSD: AT7456E
- Blackbox: 16M Flash Memory
- Uarts: 6Set
- ESC Signal: 8Set
- LED Controller: BF LED/MB LED
- I2C: Yes
- F.Port: Yes
- Buzz: Yes
- WiFi: Yes
- TVS Protection: Yes
- BEC: 3.3V 0.5A & 5V 3A & 9V 3A
- Mounting Pattern: 30x30 M3

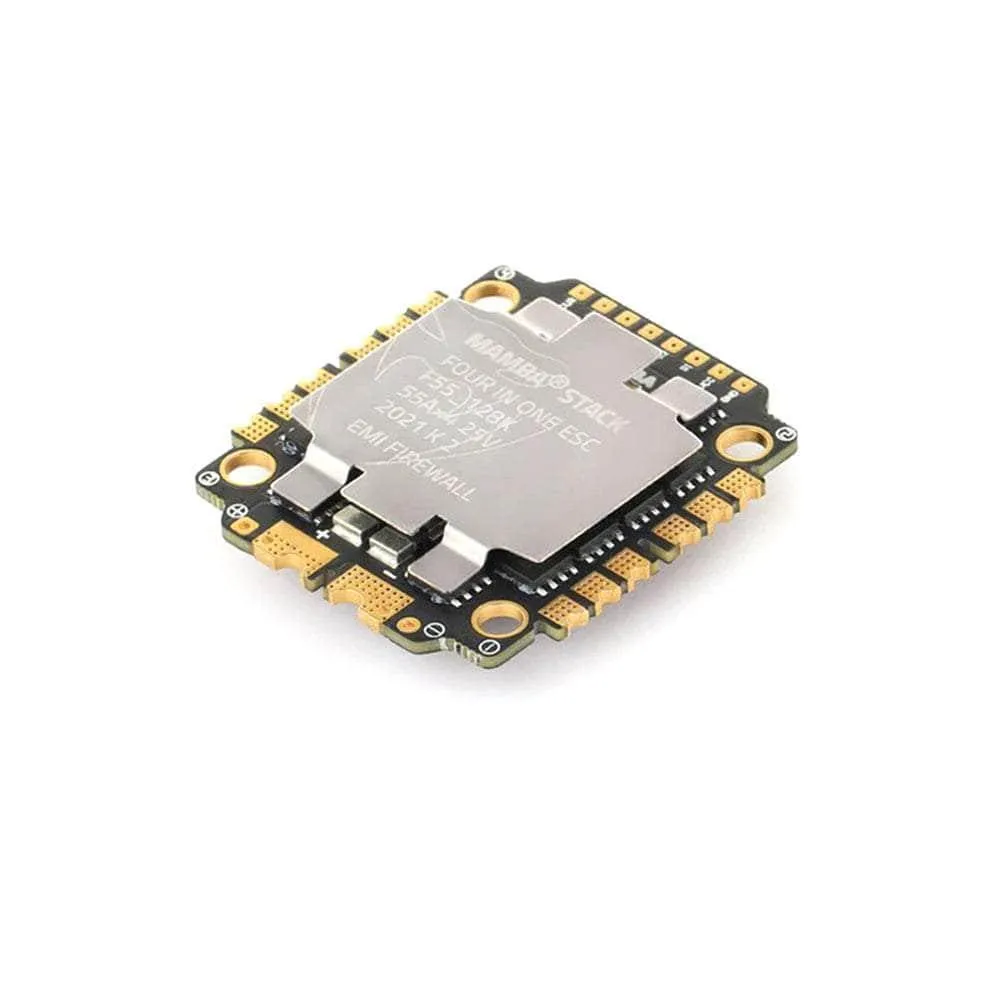

Mamba F55 128k
- Input Voltage: 3~6S Lipo (12.6V~25.2V)
- Max Continuous Current: 55A
- Max Burst Current: 65A
- BEC: No
- Target：BLHeli_32 MAMBA F55_128K
- Protocol: Dshot300/600/1200
- PWM Range: 24~128K
- TVS Protection: Yes
- Mounting Pattern: 30x30 M3
Includes
- 1x Diatone Mamba MK4 F722 APP F55_128k 3-6S 30x30 Stack/Combo (F722 FC / 55A 128k 32bit 4in1 ESC)
