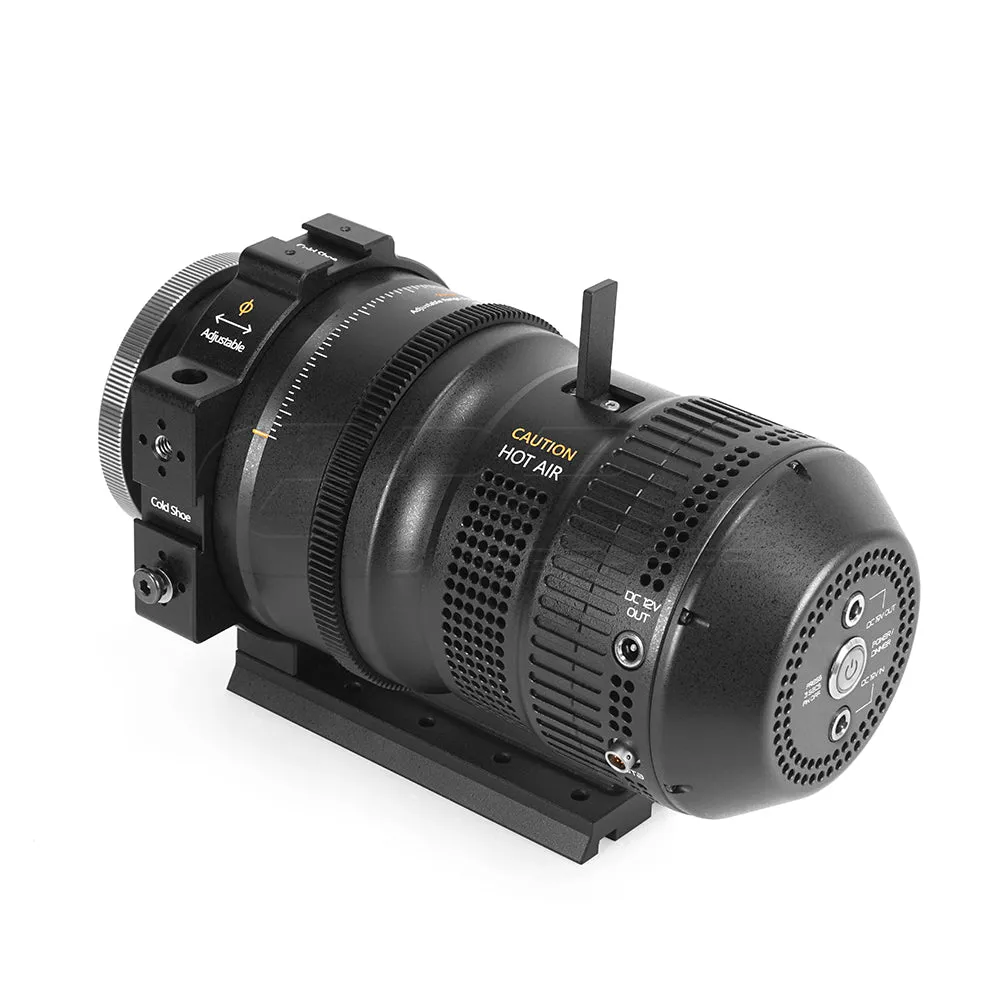

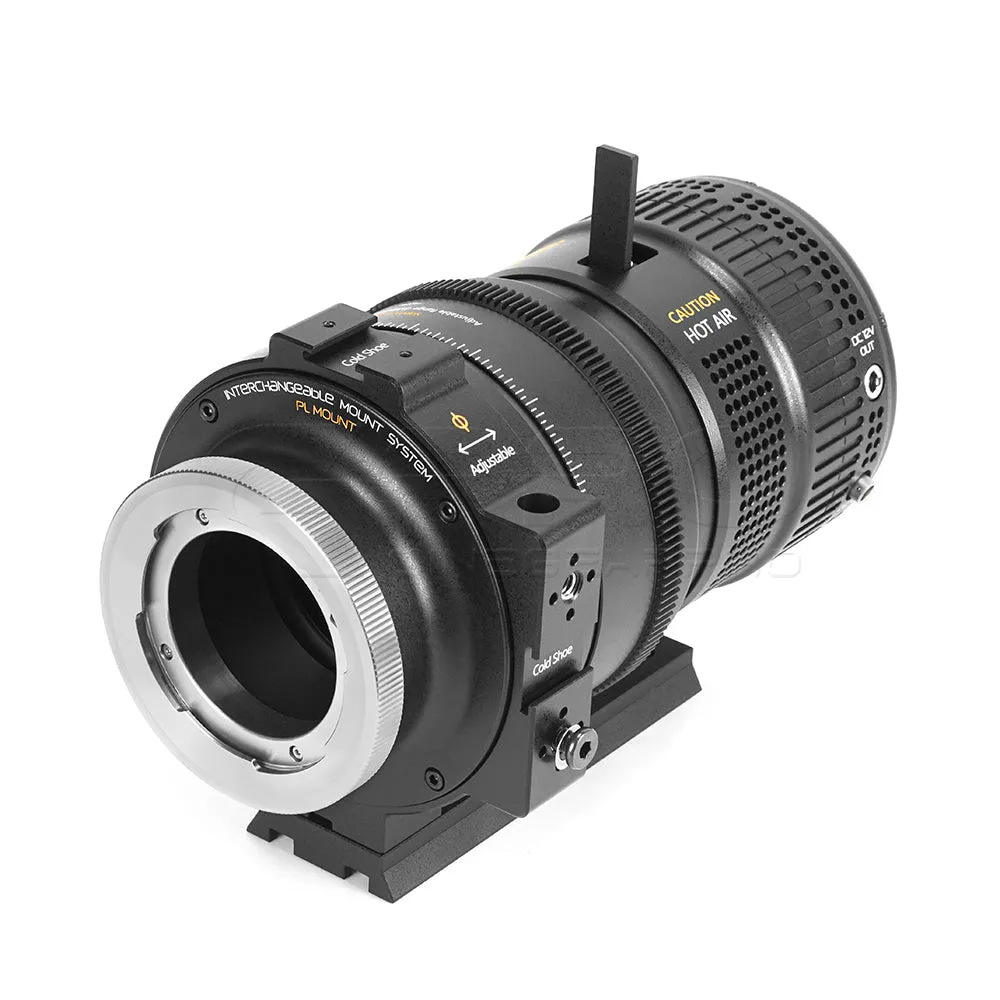

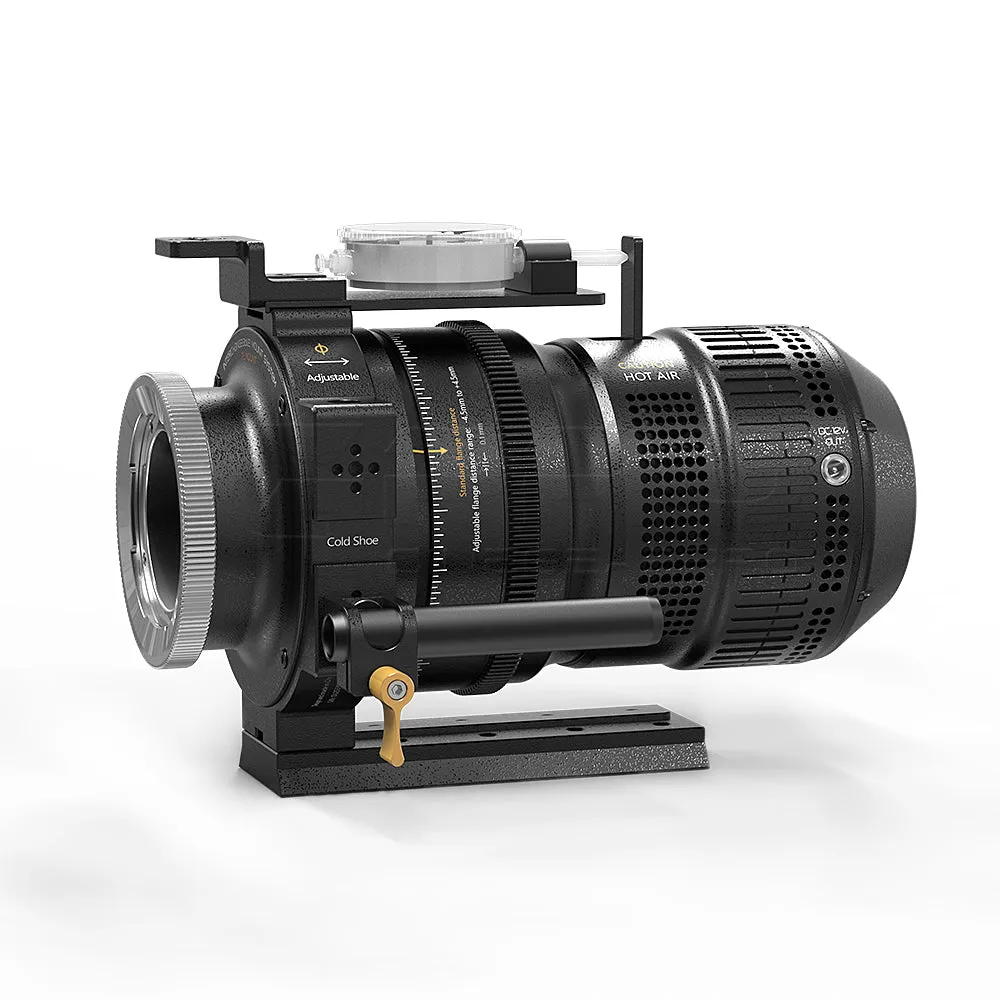

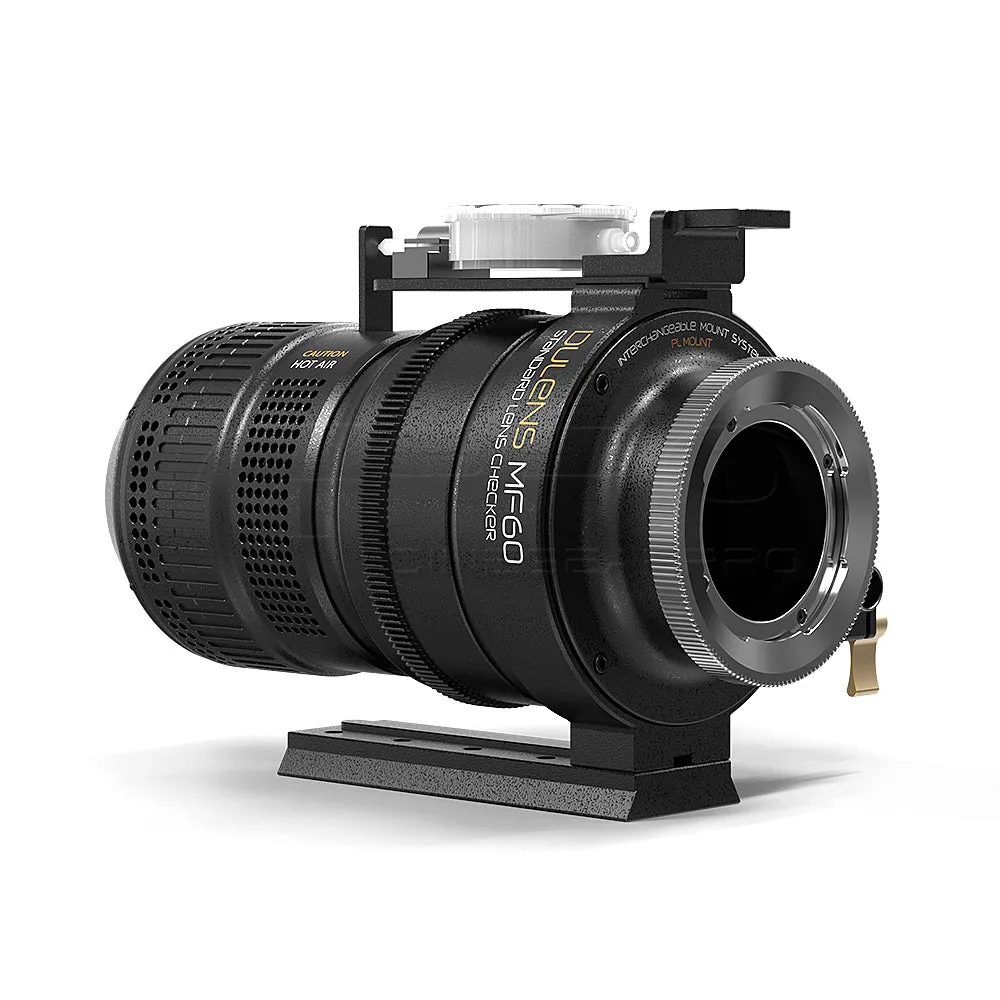

Introducing Dulens MF60 Portable Lens Projector. Whether used as a fixture in a controlled environment or live on-location, this lightweight portable projector makes lens testing easy.

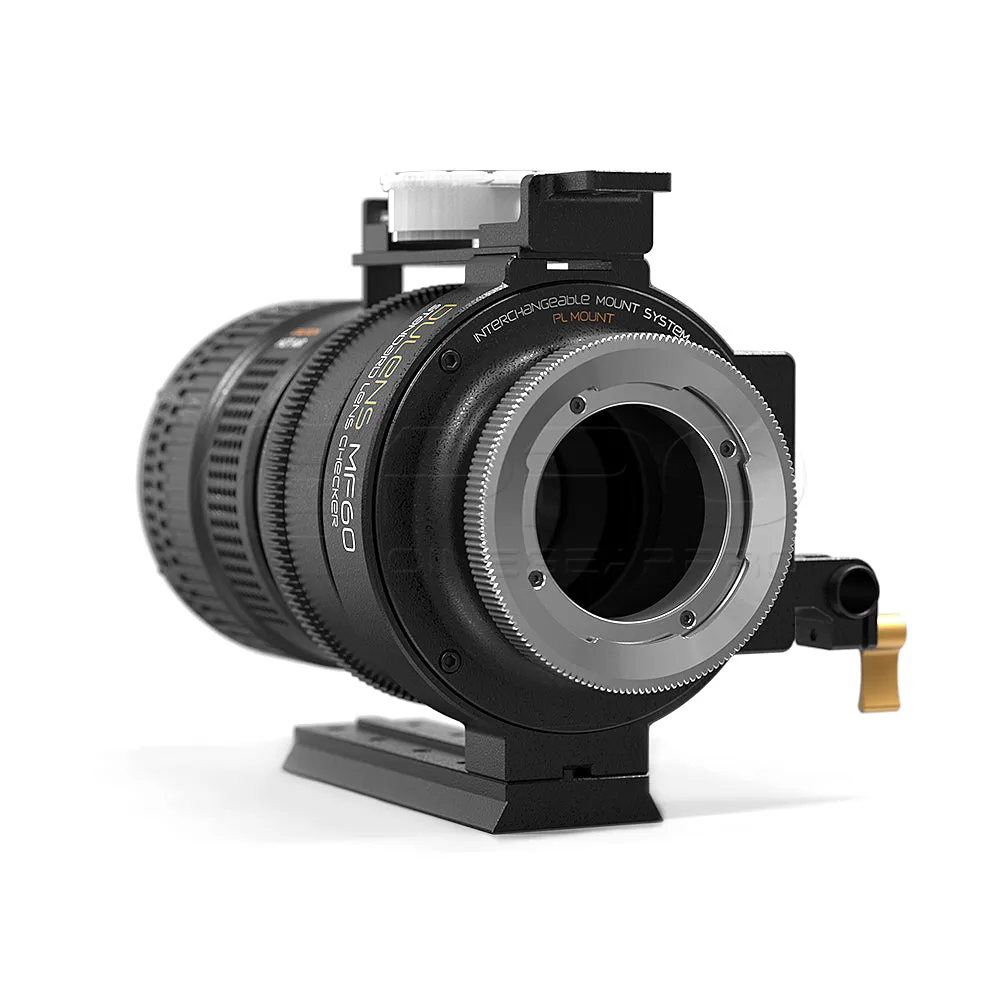

Interchangeable Mount System
-LPL, PL, EF, E, RF, GFX and more
50w LED Ra97 Light
Brightness of 4000 Lumens | 6500K | Dimmable by 6 steps
12v Output
Wireless follow focus power
Reticle Charts and Lens Coverage UP To ALEXA 65
Our Standard Reticle Chart displays the following formats:
Super 16mm : 12.52 x 7.4mm
MFT: 17.3 x 13mm
Super 35mm : 24.89 x 18.67 mm
ALEXA 35 : 27.99 x 19.22 mm
Full Frame : 36×24 mm
RED Vista Vision: 40.96 x 21.6 mm
ALEXA LF : 36.7 x 25.54 mm
GFX Frame : 44 x 33 mm
ALEXA 65: 54.12 x 25.58 mm
Specifications:
|
Body Material:
|
Aluminum Alloy
|
|
Body Weight:
|
7.3 lbs / 3.3kg
|
|
Size (WxHxL) :
|
9.4x6.6x4.7" / 240 x 168 x 120 mm
|
|
Mount:
|
PL, LPL, EF, E, RF, GFX, and more
|
|
Optical Lowpass Filters:
|
2mm, 2.5mm, 3mm ( Extra Cost)
|
|
Projector:
|
50W LED Ra97 Light 6500k, 4000 Lumens
|
|
Dimmable:
|
6 Steps
|
|
Adjustable Beam Focus:
|
0.15'' / 4mm forward & Backwards
|
|
Digital Measuring Guage:
|
Only comes with complete package
|
|

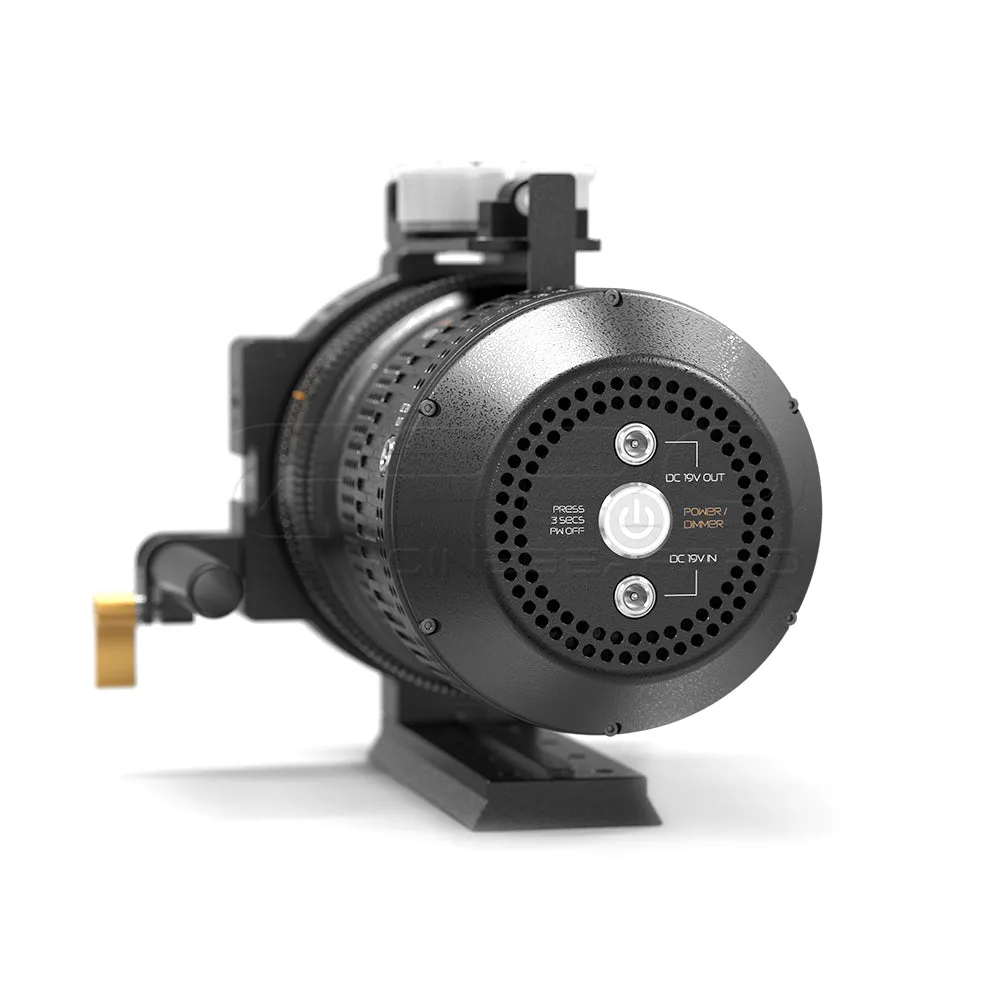

Power:
|
19V 90W DC Power Supply
|

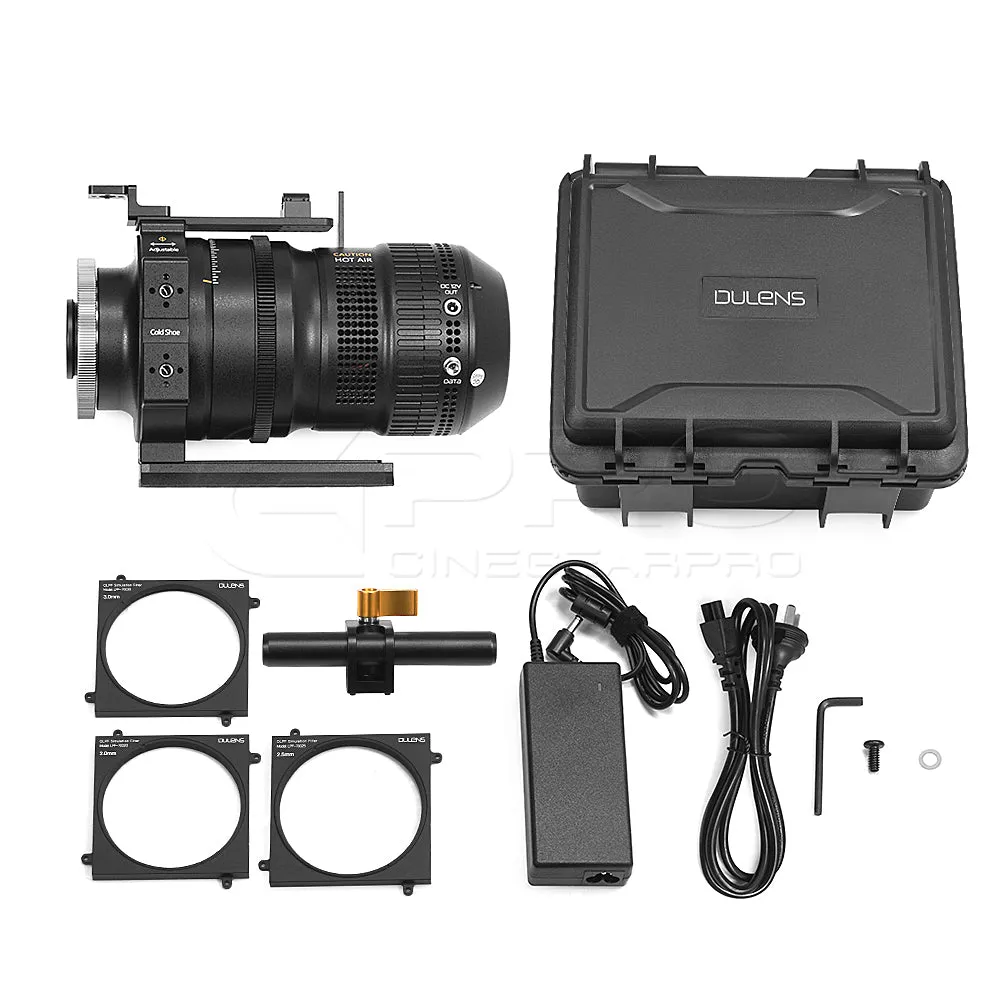

Package Contents:

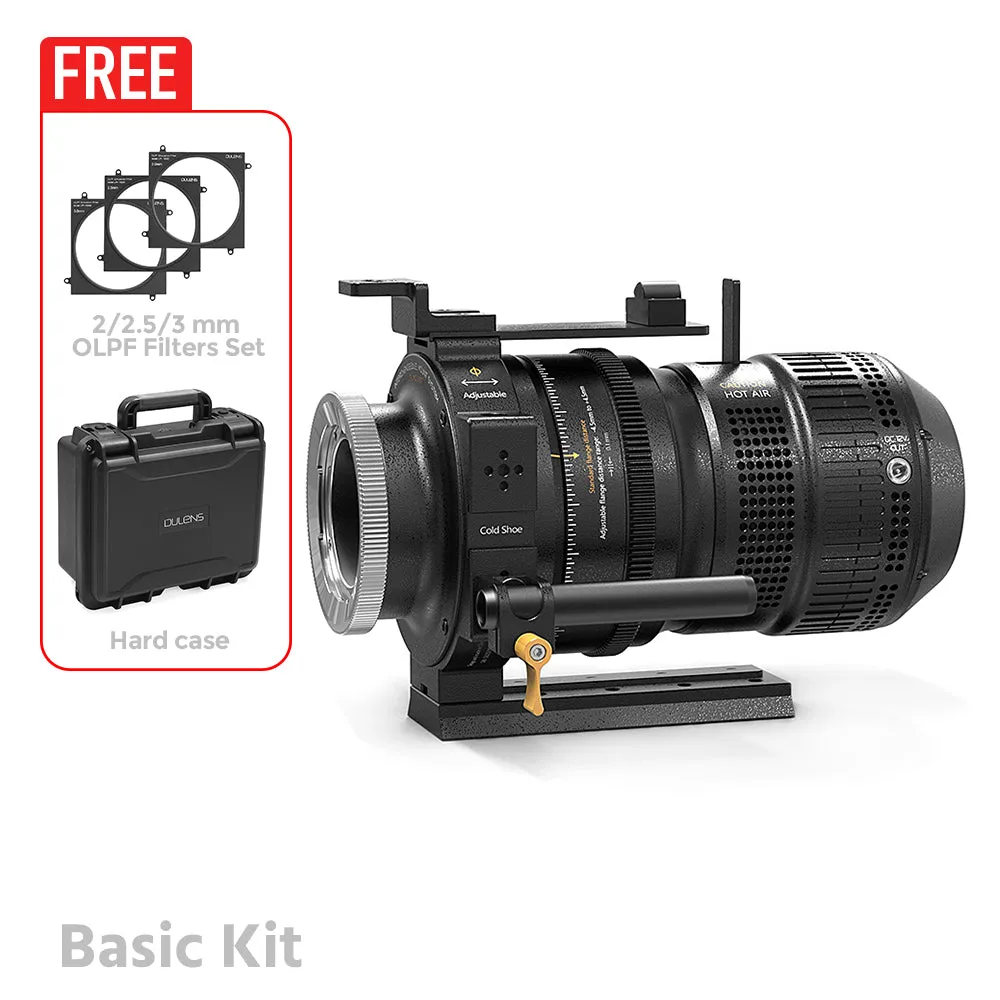

Basic Kit(536195):
1x DULENS MF60 LENS PROJECTOR
1x PL Mount
1x Standard Reticle Chart
1x 15mm Rod and Bracket
1x AC Adaptor
1x ARRI Standard Release Plate

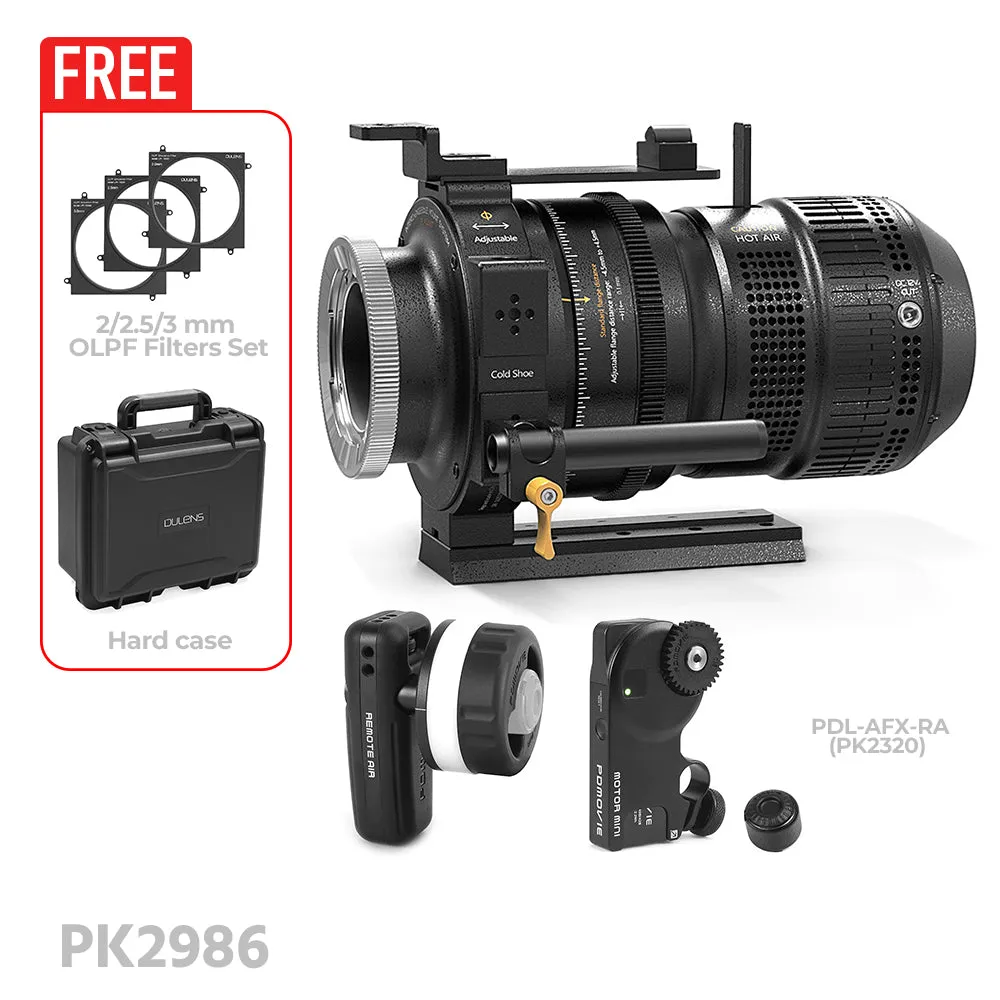

Basic Kit / PDMOVIE Live Air3 (PK2986):
1x Basic Kit(536195)
1x PDMOVIE LIVE AIR 3 Handwheel Wireless Lens Control Kit PDL-AFX-RA()

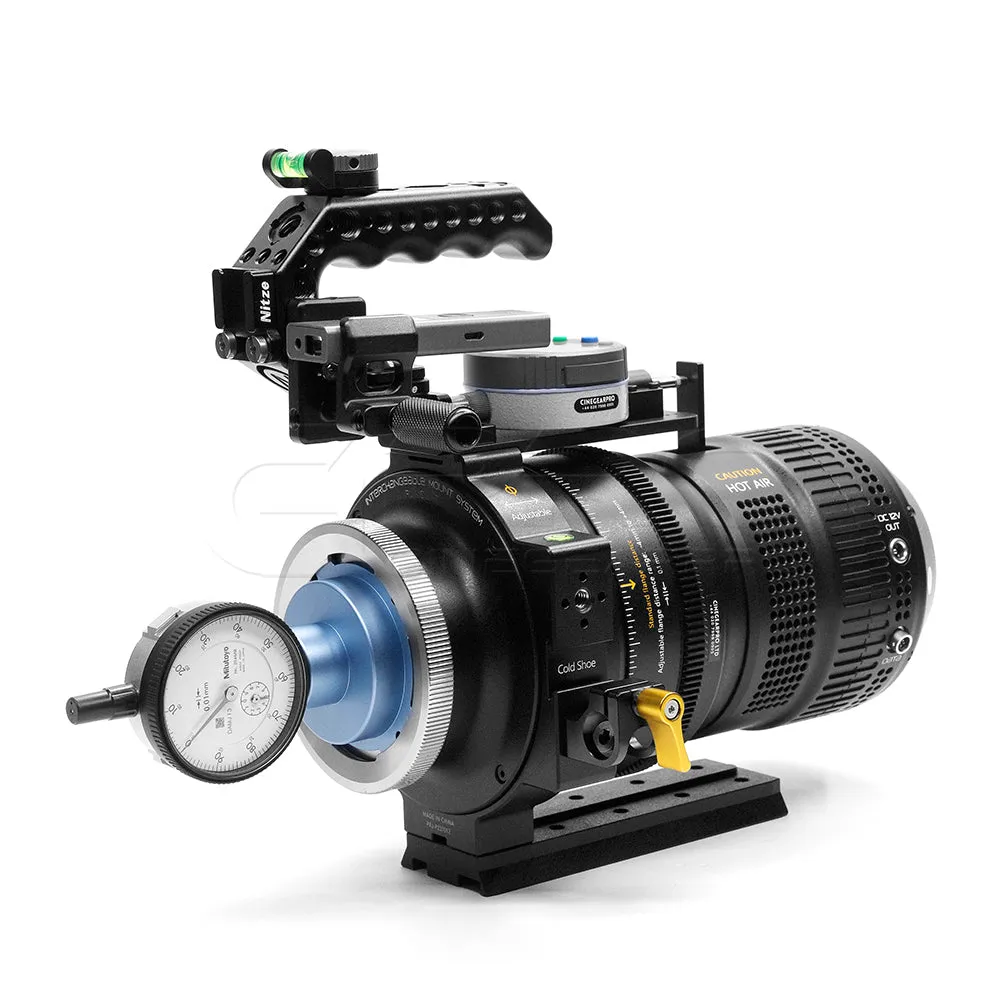

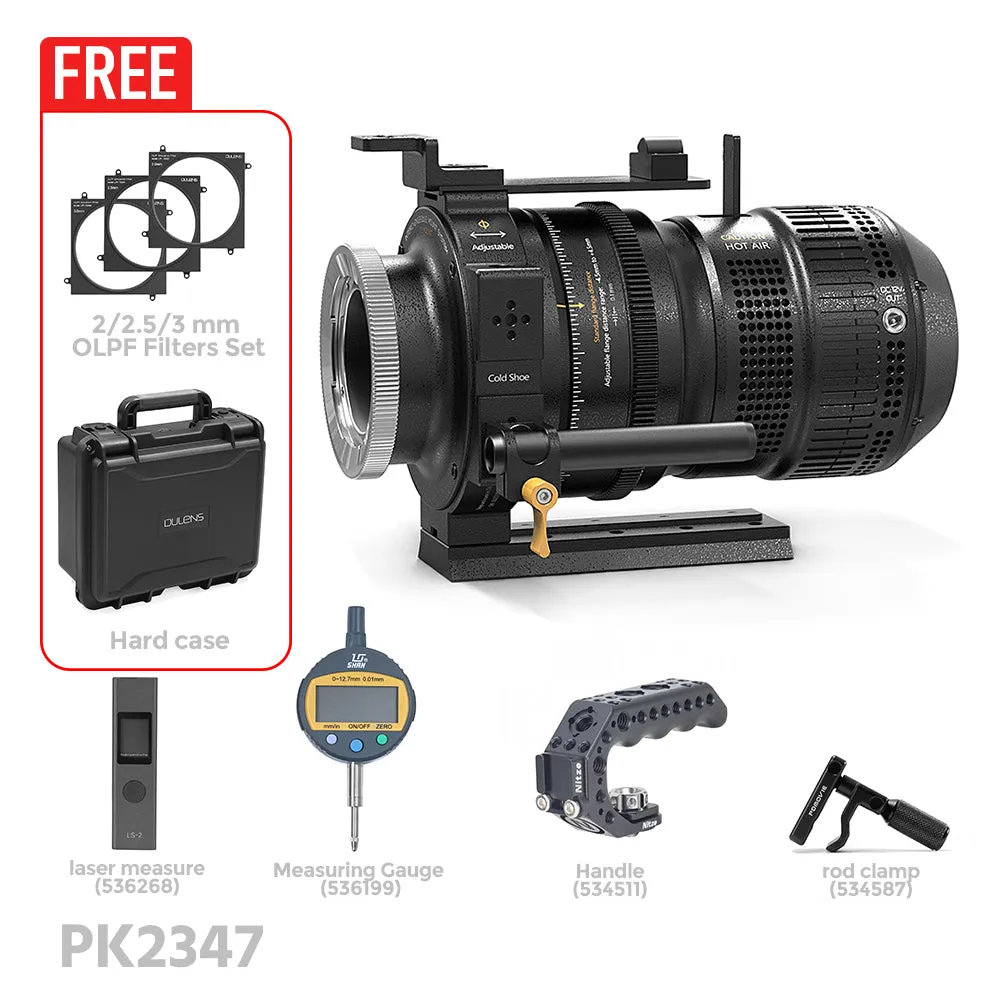

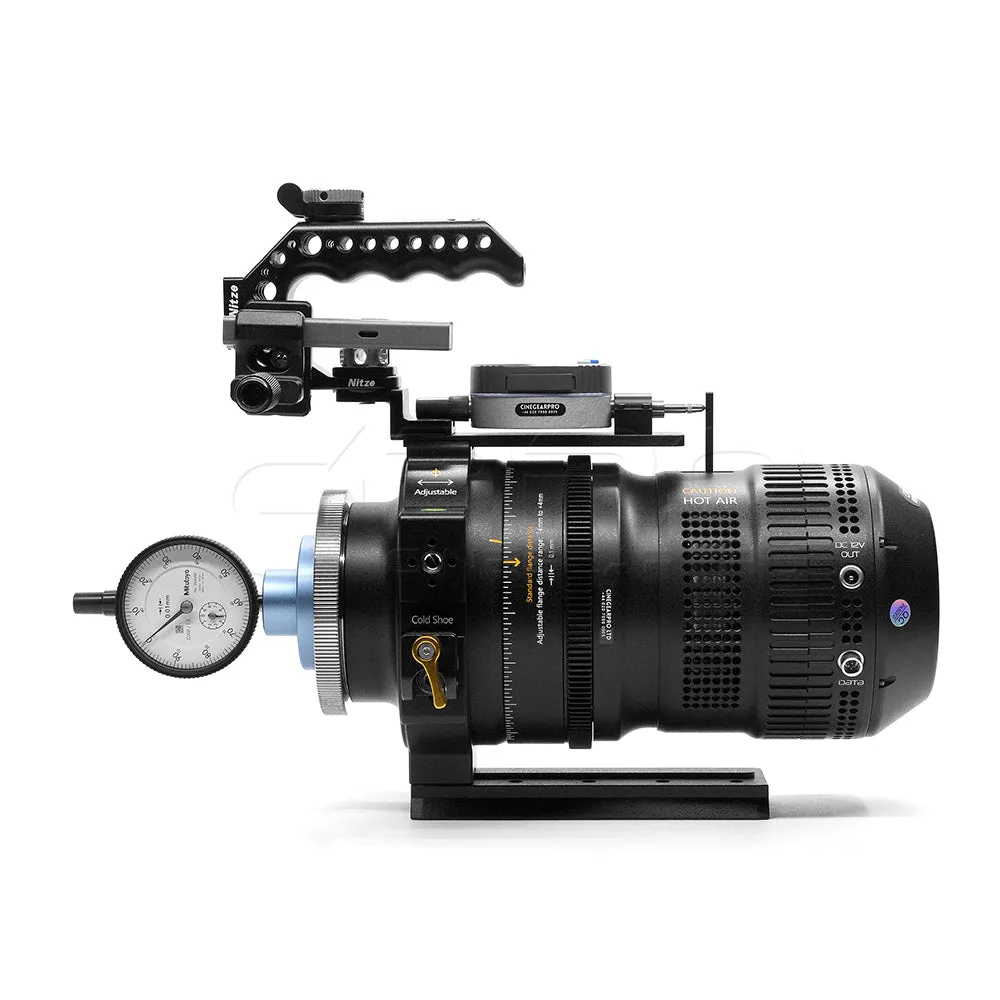

Kit A(PK2347):
1x Basic Kit(536195)
1x Nitze Lil Stinger Handle ()

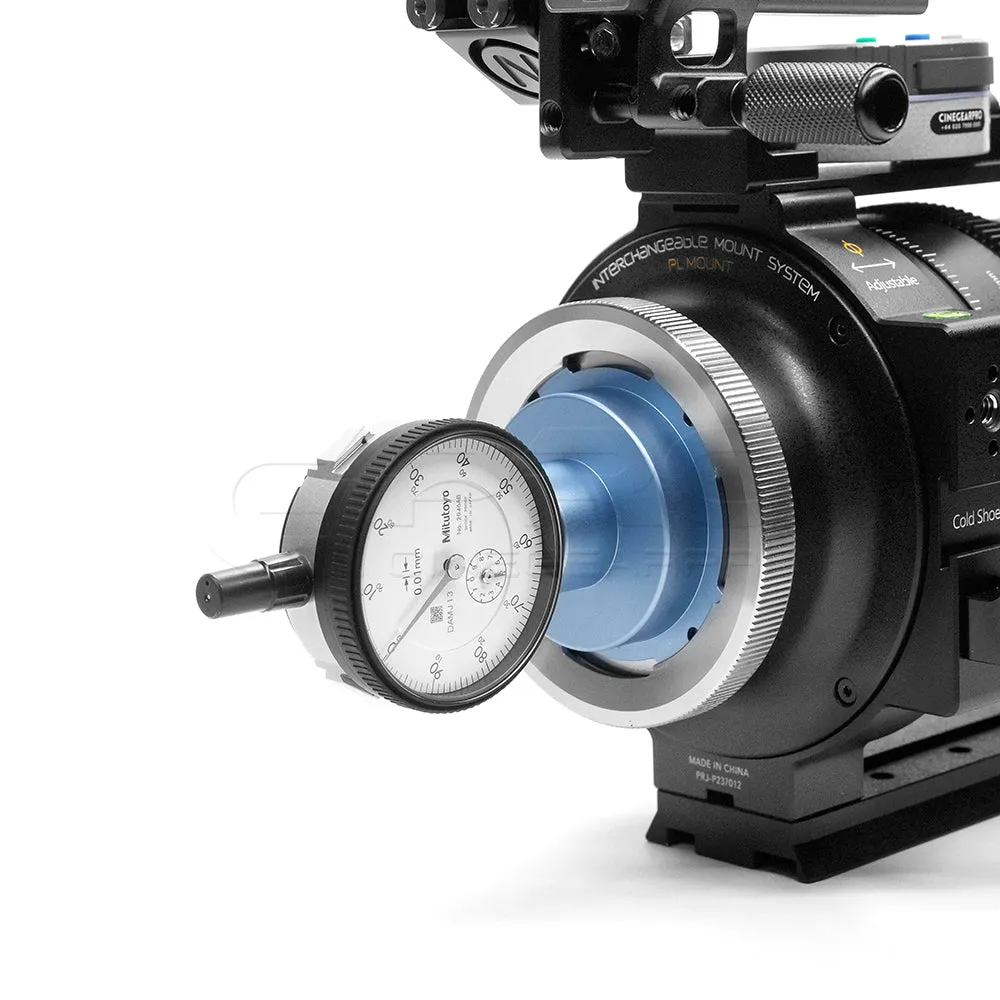

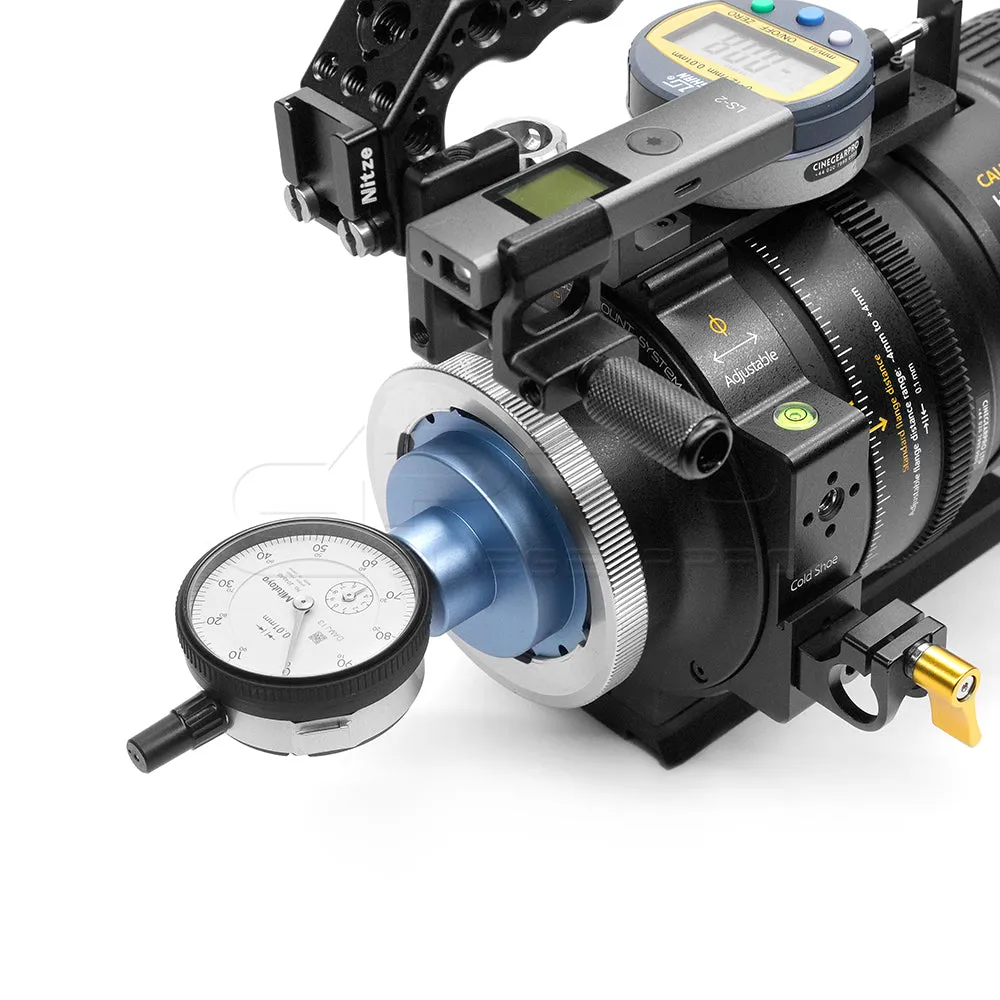

1x Digital Measuring Gauge (Backfocus Adjustment)
1x PDMOVIE Multi-function Rod clamp With 1/4"-20 threaded holes()
1x Portable laser measure

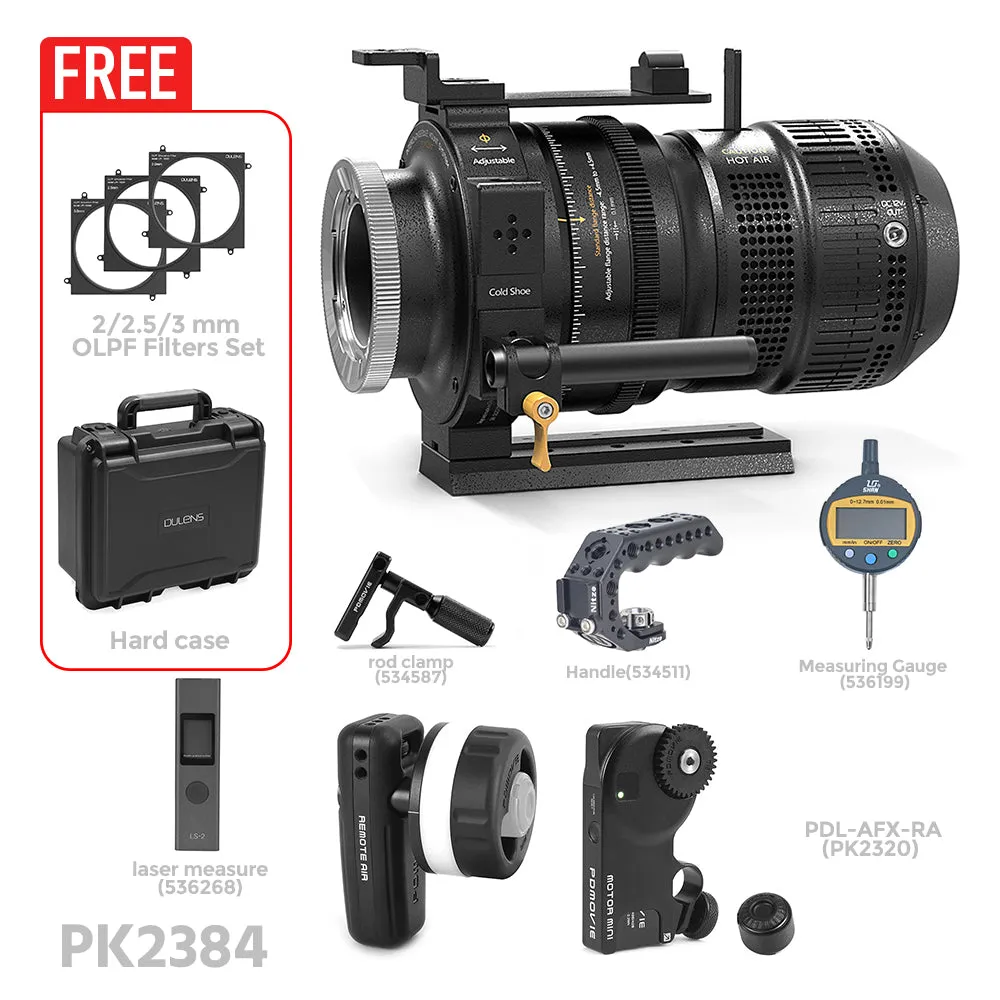

Kit A / PDMOVIE Live Air3 (PK2384):
1x Kit A(PK2347)
1x PDMOVIE LIVE AIR 3 Handwheel Wireless Lens Control Kit PDL-AFX-RA()

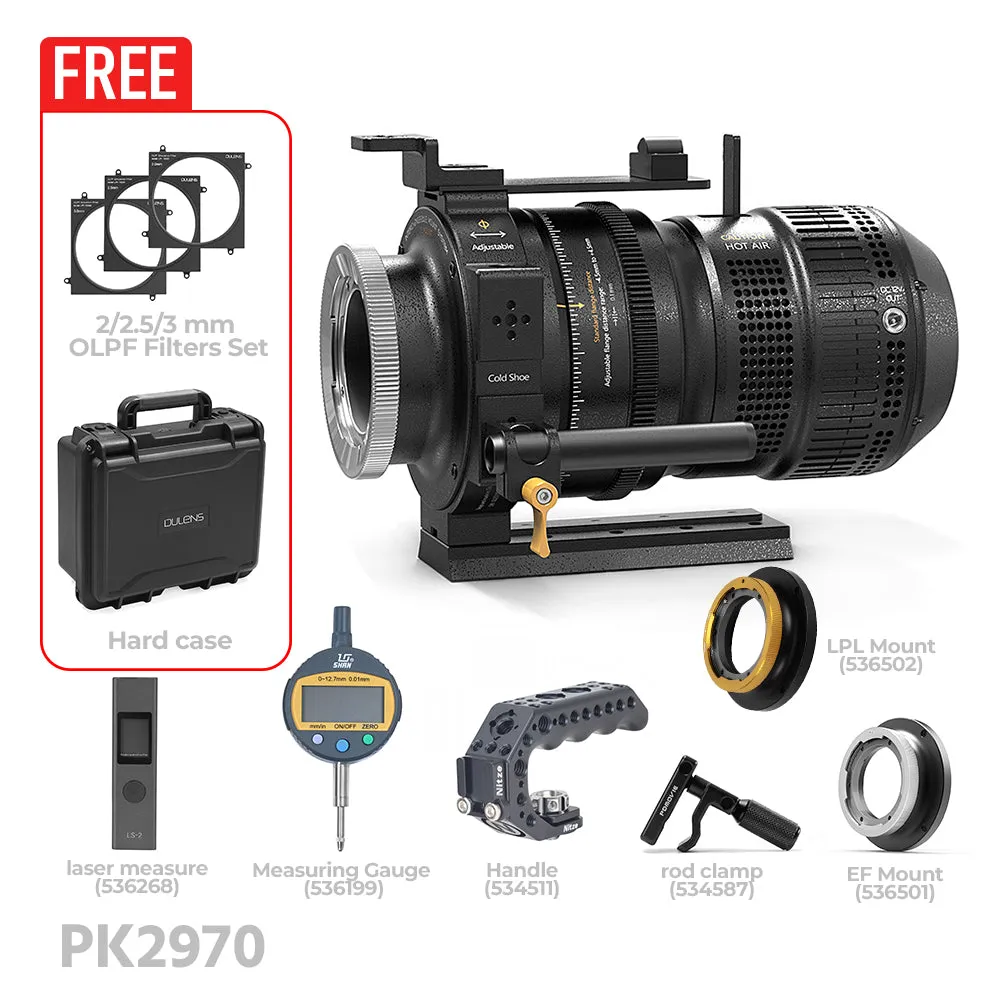

Kit B(PK2970):
1x Basic Kit(536195)
1x Nitze Lil Stinger Handle ()
1x Digital Measuring Gauge (Backfocus Adjustment)
1x PDMOVIE Multi-function Rod clamp With 1/4"-20 threaded holes()
1x Portable laser measure
1x DULENS EF Mount Adapter For MF60 Projector()
1x DULENS LPL Mount Adapter For MF60 Projector()

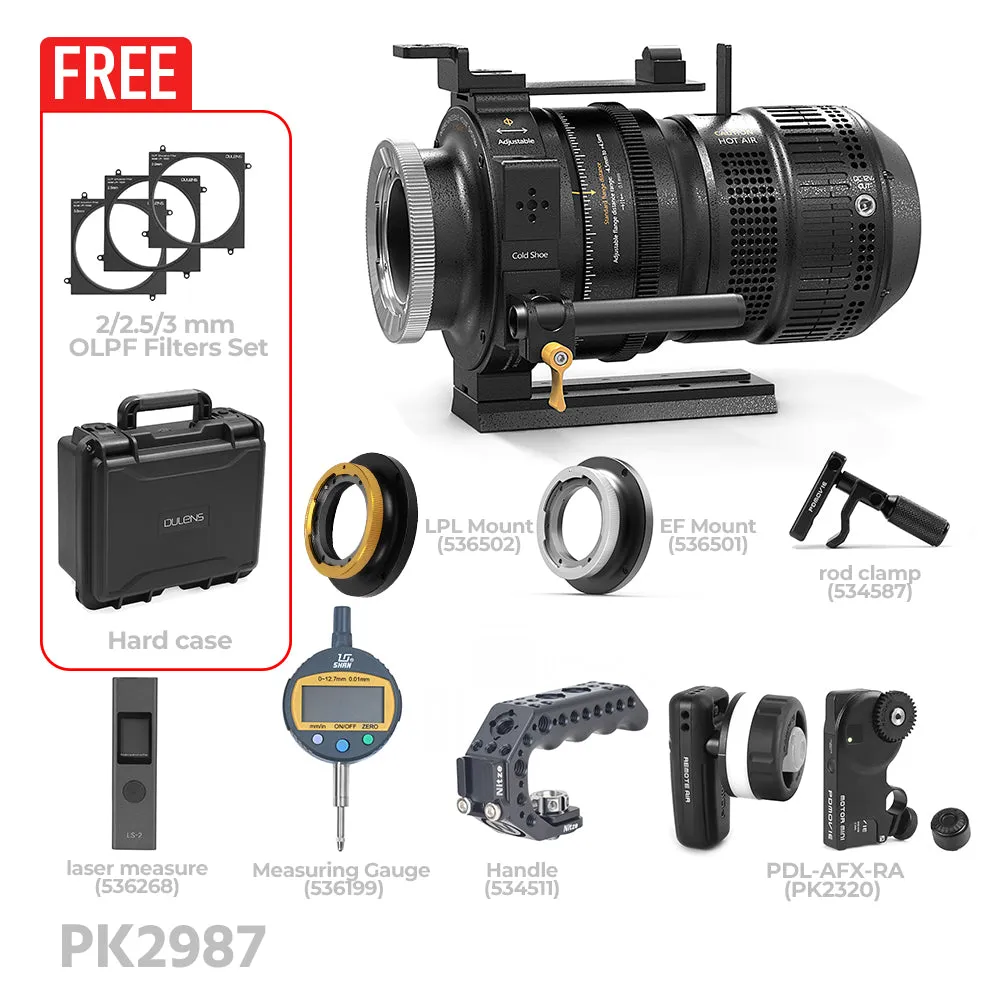

Kit B / PDMOVIE Live Air3 (PK2987):
1x Kit A(PK2970)
1x PDMOVIE LIVE AIR 3 Handwheel Wireless Lens Control Kit PDL-AFX-RA()

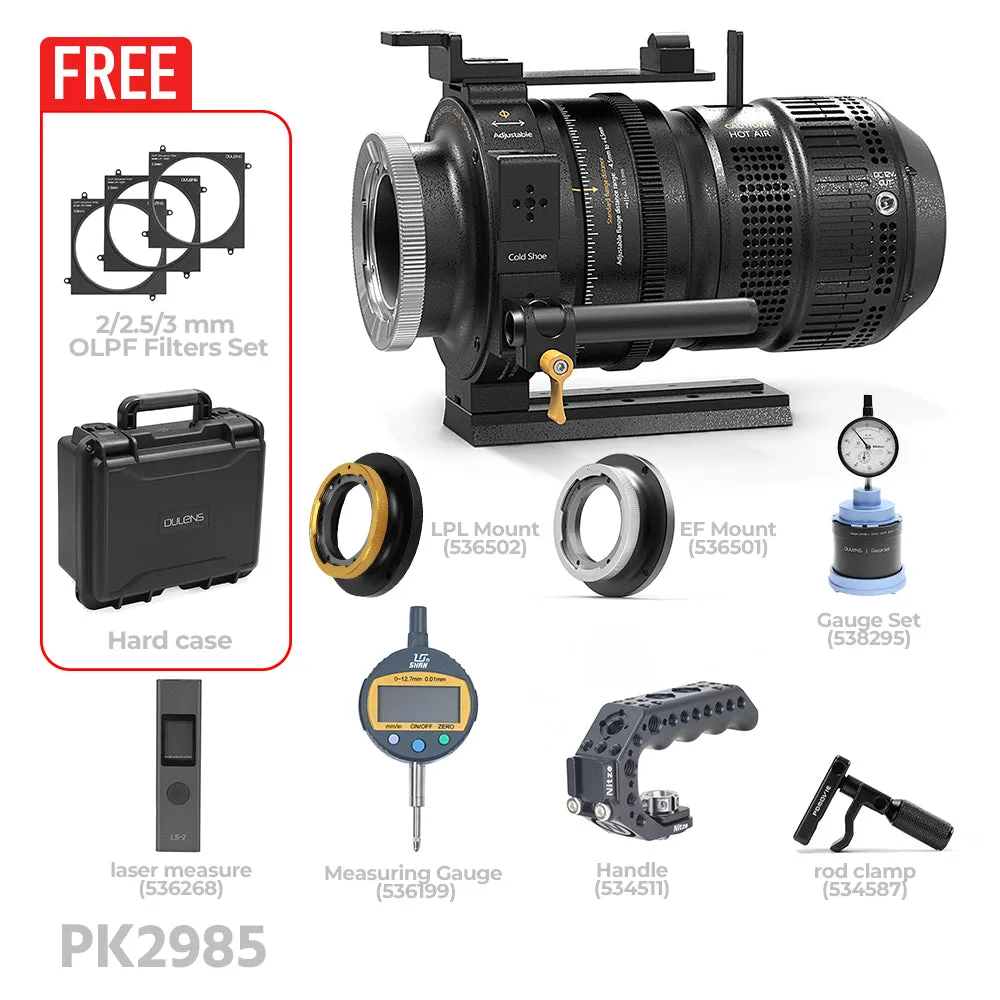

Kit C(PK2985):
1x Basic Kit(536195)
1x Nitze Lil Stinger Handle ()
1x Digital Measuring Gauge (Backfocus Adjustment)
1x PDMOVIE Multi-function Rod clamp With 1/4"-20 threaded holes()
1x Portable laser measure
1x DULENS EF Mount Adapter For MF60 Projector()
1x DULENS LPL Mount Adapter For MF60 Projector()
1x DULENS Gauge Set For MF60 Lens Projector()

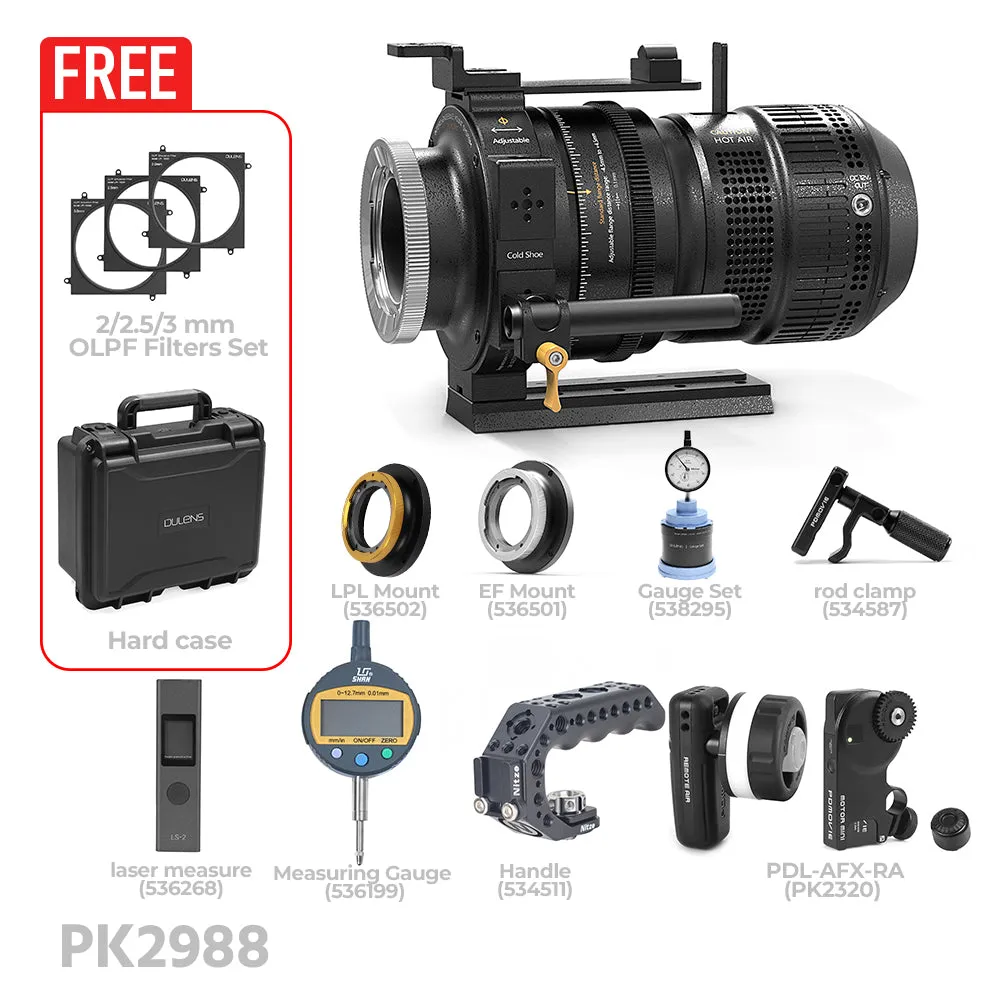

Kit C / PDMOVIE Live Air3 (PK2988):
1x Kit C(PK2985)
1x PDMOVIE LIVE AIR 3 Handwheel Wireless Lens Control Kit PDL-AFX-RA()
