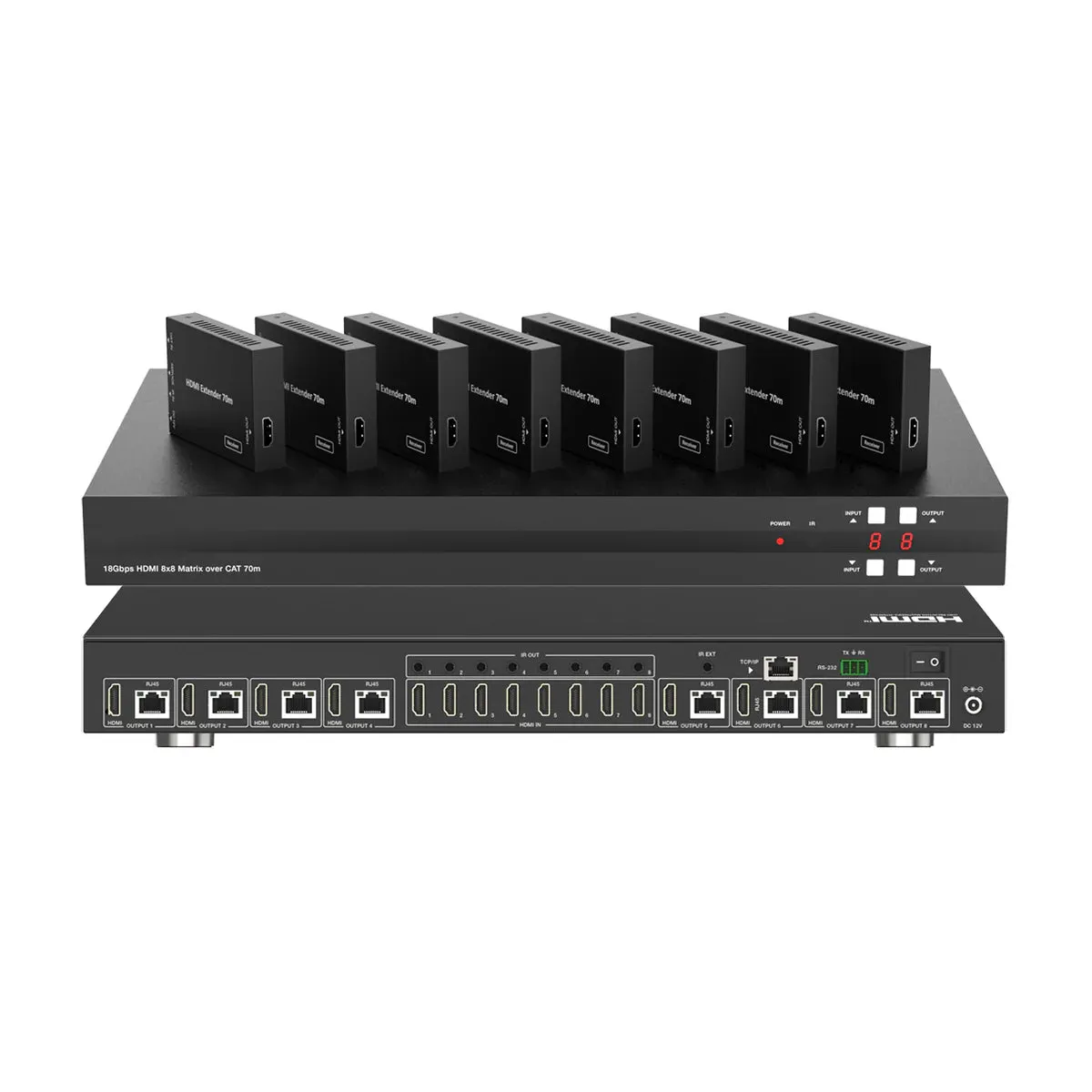

DVDO-Matrix-88-CAT is a 4K 8x8 matrix switcher with 8 HDMI inputs and 8 HDMI outputs with 8 mirrored CAT outputs, allowing the connection of 8 HDMI sources to up to 16 displays.

It can transmit video signals with resolutions up to 4K2K@60Hz 4:4:4 and supports HD digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio.

The CAT outputs can extend the signals up to 230ft/70m to the CAT receivers that come with the matrix switcher.

DVDO-Matrix-88-CAT supports one-way IR matrix function and can be controlled with front panel buttons, IR remote, RS-232, IP and web GUI.

Specifications

• HDMI 2.0b and HDCP 2.2/1.x compliant
• Video resolutions up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports
• 8 HDMI inputs, 8 HDMI 8 mirrored CAT outputs
• HDMI ports support 18Gbps lossless compressed video bandwidth
• HDR, HDR10, HDR10 , Dolby Vision & HLG
• CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable
• HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
• Advanced EDID management and CEC control
• 12V POC on all CAT ports
• One-way IR matrix function
• Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
