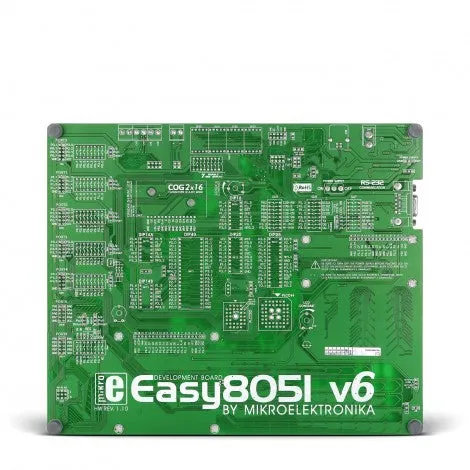

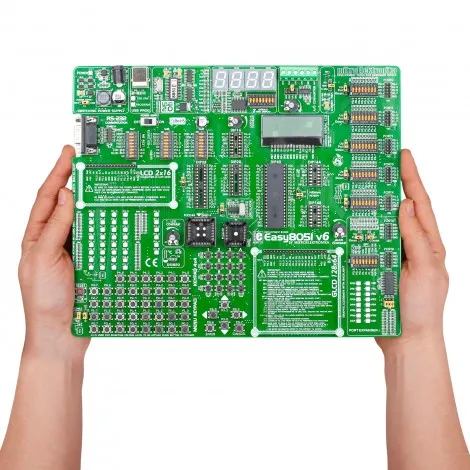

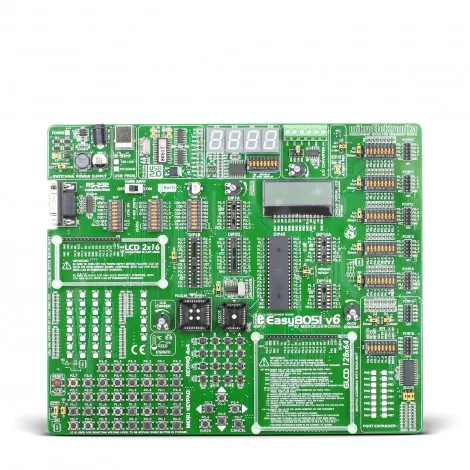

Easy8051 v6
The Easy8051 v6 is compatible with 14-, 16-, 20-, 28-, 40-pin PLCC44 and PLCC32 MCUs. It comes with an AT89S8253. The board has a USB 2.0 programmer and many peripherals such as port expander, MENU and 4x4 keypads etc.
In-Circuit Debugger
On-board USB 2.0 Programmer is driven by a single USB port on a PC. No additional AC power adapter is needed. The programmer is recognized by Windows, which simplifies the driver installation. The programmer board is specifically designed for In-Circuit Serial Programming (ICSP). This USB programmer doesn't use a bootloader or any similar software for programming. The whole 8051 memory and all pins are available to you. This is a USB 8051 InSystem programmer ideal for your future projects. Note: This programmer supports only 8051 microcontrollers with SPI Serial Interface for Program Downloading.
Features
Sockets
System provides support for MCUs in DIP14, DIP16, DIP20, DIP28, DIP40, PLCC44 and PLCC32 pin packages.
Displays
The graphic LCD 128x64 and LCD 2x16 (LCD2x16 is included) can be easily connected via the on-board connectors. The board features four 7-segment displays in multiplex mode.
Communication and Interfaces
RS-232 communication is enabled via DB9 connector and MAX232 level converters.
PORTs, buttons and LEDs
38 push buttons and 38 LEDs are connected to all microcontrollers pins. DIP switch is used to separate port pins from pull-up/pull-down resistors.
Package Contains
- Easy8051 v6 development system
- USB cable
- 2x16 LCD display
- Documentation
