Hall Research UV232B VGA Over Cat5 Sender and Receiver Kit
The Model UV232B Kit is used to send high resolution video and full-duplex RS-232 over a single twisted-pair cable to a remote location up to 500 feet away.
The input video can be from a RGBHV (PC video to WUXGA) or YPbPr (HD analog component to 1080p).
DDC compliant EDID emulation assures proper PC boot-up with video output.
The Bi-directional RS-232 can be used to control LCD's or Projectors that have RS-232 control, or connect to a compatible touch-screen LCD.
Applications include kiosk solutions, conference halls, digital signage, interactive operator systems, factory or laboratory data acquisition and control, and more.
Only the receiver requires a power supply (included). The Sender is powered from the VGA source per VESA standard ( 5v on pin 9). If the source is not VESA compliant in that regard, or if the video is YPbPr (using a 3 RCA to HD15 input cable), then a power supply would be needed at both ends. Please contact your dealer to obtain a second power supply.

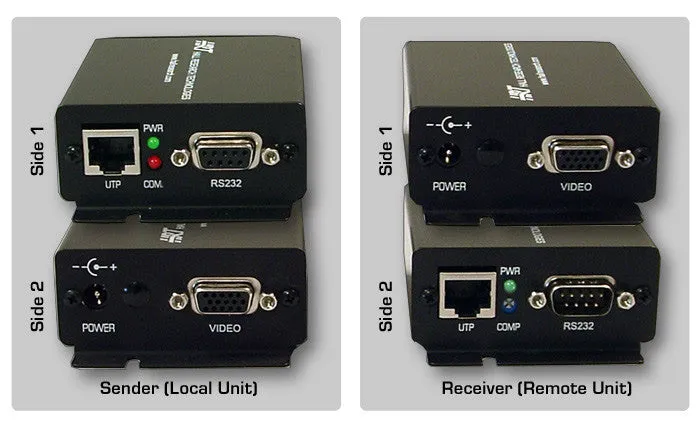

The kit includes a local unit (Sender) that includes a VGA & serial cables, plus a remote unit (Receiver) that includes a power supply.
It is recommended that for best image quality low-skew UTP cables be utilized (such as Hall Research's Zero-Skew cables), otherwise at long distances (>200ft) and high-resolutions, RGB skew may be present and a separate skew corrector would be necessary (HRT Model SKU-RGB).
Features
The Model UV232B Kit is used to send high resolution video and full-duplex RS-232 over a single twisted-pair cable to a remote location up to 500 feet away.
The input video can be from a RGBHV (PC video to WUXGA) or YPbPr (HD analog component to 1080p).
DDC compliant EDID emulation assures proper PC boot-up with video output.
The Bi-directional RS-232 can be used to control LCD's or Projectors that have RS-232 control, or connect to a compatible touch-screen LCD.
Applications include kiosk solutions, conference halls, digital signage, interactive operator systems, factory or laboratory data acquisition and control, and more.
Only the receiver requires a power supply (included). The Sender is powered from the VGA source per VESA standard ( 5v on pin 9). If the source is not VESA compliant in that regard, or if the video is YPbPr (using a 3 RCA to HD15 input cable), then a power supply would be needed at both ends. Please contact your dealer to obtain a second power supply.
The kit includes a local unit (Sender) that includes a VGA & serial cables, plus a remote unit (Receiver) that includes a power supply.
It is recommended that for best image quality low-skew UTP cables be utilized (such as Hall Research's Zero-Skew cables), otherwise at long distances (>200ft) and high-resolutions, RGB skew may be present and a separate skew corrector would be necessary (HRT Model SKU-RGB).
Features
- Sends PC or HD video and bi-directional RS-232 over single Catx
- Wide bandwidth to transmit WUXGA signals (1920x1200 / 60hz) or HD Analog Component (1080p)
- Compensation for UTP cable to 500 ft
- No power supply required for local unit - when powered from VESA compliant VGA Source
- DDC compliant EDID emulation on the Sender
- Supports all baud rates to 115 Kbps
- Perfect for touch-screen, Kiosk, or Projector Control applications
- RS-232 and high quality VGA input cables provided
- Compact metal enclosure with mounting provisions
- Compact, Rugged, Reliable, and Economical
- Made in USA
