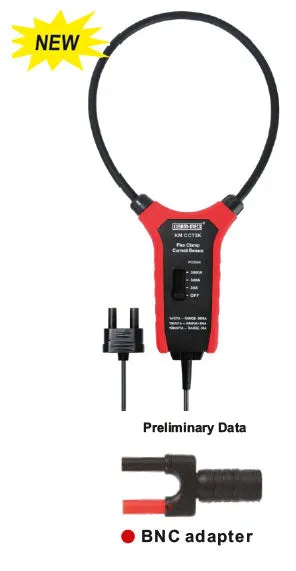

The Kusam Meco KM CCT3K Flex Clamp Sensor is an advanced tool designed to measure AC currents up to 3000A in challenging environments. Its flexible Rogowski coil enables easy measurement around large conductors or in tight spaces where traditional clamp meters cannot fit. When paired with compatible devices like the KM-4000 or KM-4002, it delivers precise and stable current readings, making it ideal for professional electricians seeking a reliable, portable solution for high-current measurements.

Key Features:

• Flexible Rogowski Coil: Allows for easy wrapping around conductors up to 45.7 cm (18 inches), ideal for large or awkwardly positioned cables.
• High Current Measurement: Measures a wide range from 1.5A to 3000A, suitable for various industrial and commercial applications.
• Stable and Safe Readings: Provides accurate measurements with a frequency response of 45Hz to 500Hz.
• Robust Design: 1m drop-proof construction and robust terminal connection for durability in tough working conditions.
• Direct Readout: Displays current directly when connected to KM-4000/KM-4002, offering seamless integration and enhanced usability.

Specifications:

• AC Current (A): 30A / 300A / 3000A
• Frequency Response: 45Hz ~ 500Hz
• Flex Clamp Size: 45.7 cm (18 inches)
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Storage Humidity: ≤80% RH
• Low Battery Indication: Alerts at approximately 3.3V
• Category Rating: CAT IV 600V for enhanced safety

Box Includes:

• Kusam Meco KM CCT3K Flex Clamp Sensor
• 1.5V Batteries x 3
• BNC Adapter
• User Manual
