Lumi 60- 100 inches For most 60"-100" curved & flat panel TVs

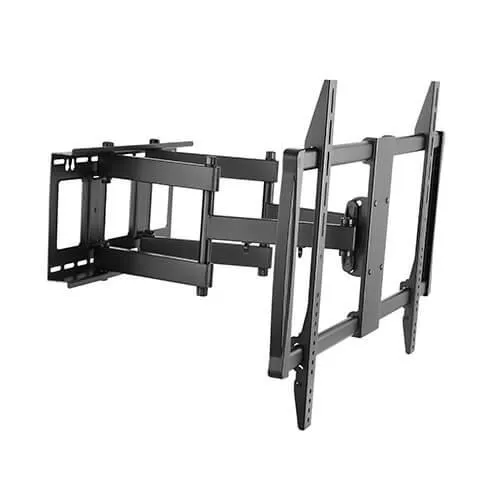

The popular model LPA37-696 is a full-motion designed to fit any 60", 75" 85" 86" 90" 98" 100" curved & flat panel TVs up to 80kgs/176lbs. Strength has been tested for a minimum of four times its stated load capacity. Full motion allows maximum flexibility — tilts and swivel your larger TV for easy viewing from any seat in a room. Post-installation level adjustment allows the TV to “roll” up to 3 clockwise and counterclockwise to ensure it is perfectly level.

FEATURES

Easy Assembly: Installation is as easy as 1-2-3
Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
Leveling adjustments: allow TV to be perfectly positioned after hanging
Cable Management: keeps everything organized
Keyhole Pattern: allows for easy installation

PECIFICATIONS

Product Category:	Full-motion TV Wall Mount
Rank:	Standard
Material:	Aluminum,Steel,Plastic
Metal Sheet Thickness:	Wall Plate THK=2.5mm cold-rolled sheet (Wall Plate THK=0.098" cold-rolled sheet)
Pipe Size:	25x50mm (0.98"x2")
Surface Finish:	Powder Coating
Color:	Fine Texture Black

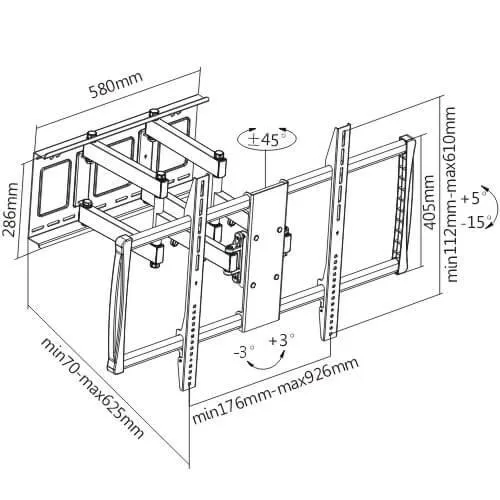

Dimensions:	625x1050x630mm (24.6"x41.3"x24.8")
Fit Screen Size:	60"-100"
Fit Curved TV:	Yes
Mounting Hole Pattern :	VESA & Universal
VESA Compatible:	200x200,300x300,400x200,400x400,600x400,800x400,800x600,900x600
Max. Mounting Hole:	900x600
Weight Capacity:	80kg (176lbs)

Strength Tested:	4 Times Approved
Profile:	70~625mm (2.8"~24.6")
Tilt Range:	5°~-15°
Swivel Range:	45°~-45°
Screen Level:	3°~-3°
Screen Freely Tilting:	Yes
Installation:	Solid Wall,Double Stud(406mm/450mm)
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Cable Management:	Yes
Anti-theft:	No
Bubble Level:	No
Accessory Kit Package:	Compartment Polybag
Certification:	UL
