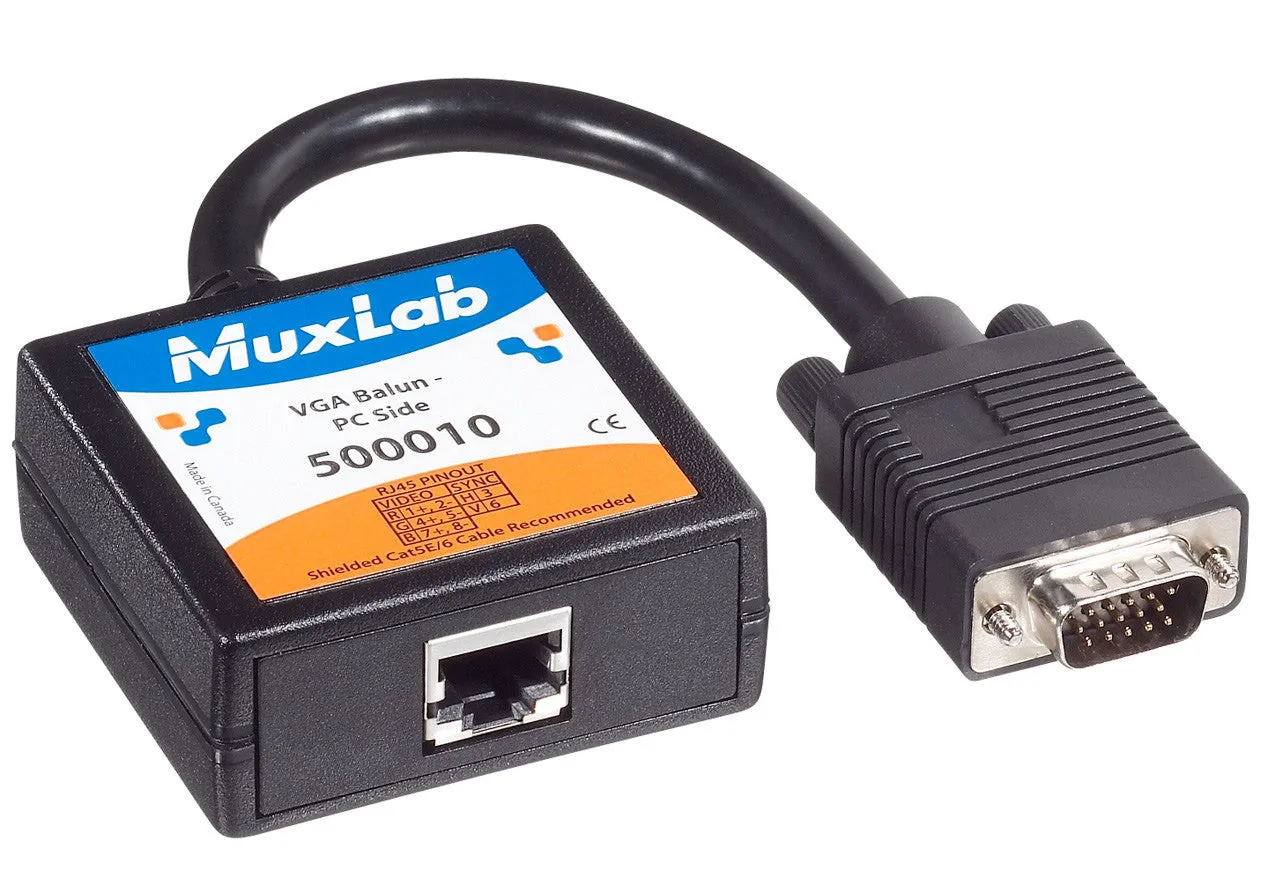

MuxLab 500010 VideoEase VGA Balun VGA Balun for PC Sid with HD15 Male and 6 Inch Lead
The VideoEase VGA Balun allows one (1) VGA video channel to be connected via four (4) twisted pairs**. Used in pairs, the VGA Balun is used in home or commercial applications as a smart, fast and cost-effective means of connecting VGA displays and projectors using twisted pair instead of coax cable. Ideal for classrooms, lecture halls, auditoriums, retail kiosks, video information displays, on-line advertising, tradeshows, hotel and convention centers, mobile presentations, collaborative viewing.
Used in pairs, the VGA Balun allows VGA video to be transmitted up to 350ft (107m) via Cat5e/6 at 800 x 600 resolution. Transmits up to Up to 250 feet @ 1024 x 768 Each VGA connection requires a VGA Balun at the source (500010) and a VGA Balun (500011 or 500014) at the display. The VGA Balun works in conjunction with PCs, laptops, plasma, LCD monitors and DLP projectors.
Features & Benefits- Up to 350 feet (106m) via Cat 5 twisted pair @ 800x600 resolution**
- Supports up to 1280x1024 pixels*
- Works with desktop PCs, CRT monitors, laptops, multimedia projectors, plasma displays, flat panel multimedia displays**
- One (1) VGA connector (PC-side:500010, Monitor Side:500011 or 500014)
- RJ45 for twisted pair**
*depending on type of video card, display and resolution.
**shielded twisted pair is highly recommended to ensure common signal ground between the VGA source and the VGA display.
