Renogy Battery Shunt 300 with Bluetooth

Ensure remote monitoring and control of your battery with Renogy Battery Shunt 300, a Bluetooth enabled shunt that not only displays state of charge, temperature and started battery voltage but also records data and triggers alerts via DC Home App.

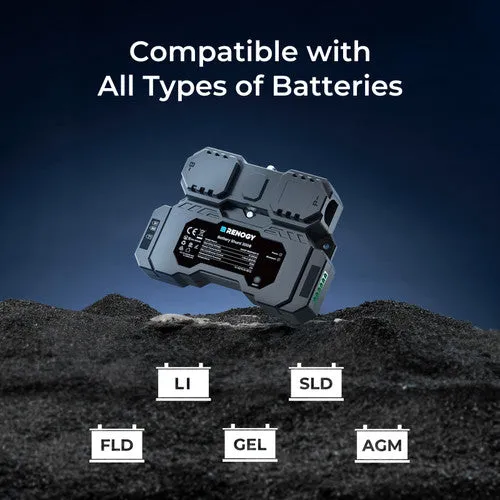

Compatible with various batteries including AGM, GEL, Flooded and SLD, the intuitive display on the shunt display real-time date and keeps records of your battery performance  through Renogy ONE core and DC home app to make informed decision on your power system.

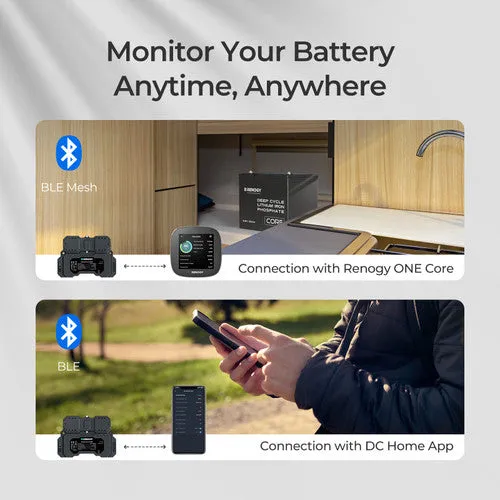

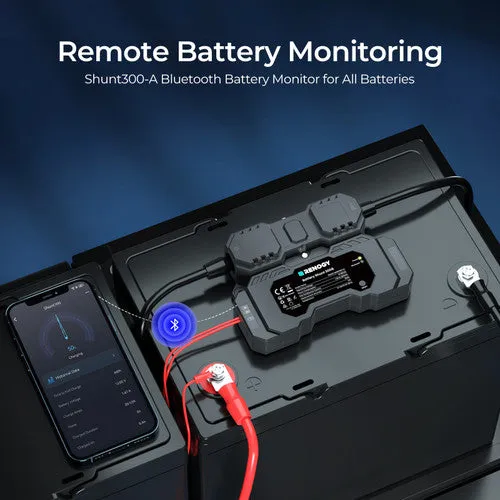

Tested for highest levels of durability, 5 mins is all it takes to install your shunt either on top of the battery or mounted on the wall. Pair it with Renogy ONE Core or DC Home app as our quick set up guides even newbies to tap into the potential real-time monitoring of their energy system.

Specifications:

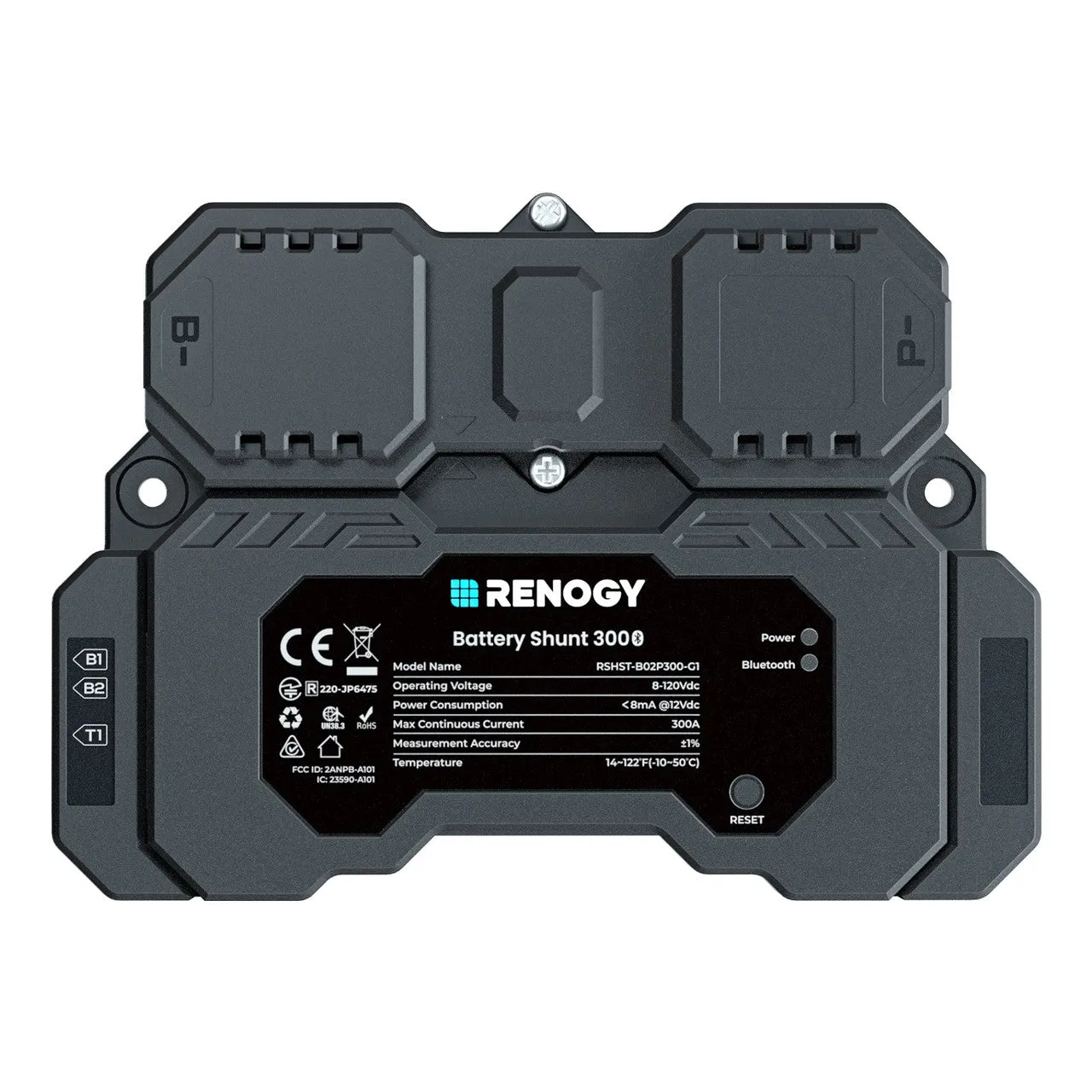

Model Name: RSHST-B02P300-G1

Power Supply: 8 - 120 VDC

Power Consumption: <0.1 W

Communication: Bluetooth LE and BLE Mesh

Max continuous current: 300A

Max peak current: 500A(<10s)

Current accuracy: ±1%

Current Resolution: 0.01 A

Battery Capacity: 1 - 6500Ah

Voltage Input Range: 8 - 60V

Voltage input resolution: 10 mV

Temperature sensor range: -20~80℃

Temperature sensor accuracy: ±1%

Operating Temperature: -4℉~122℉(-20 ℃ to 50 ℃)

Operating Humidity: 0% to 95% RH

Operating Altitude: Less than 2000m above sea level

Installation: mounted on the wall

Battery connection: M10 bolts

Weight: 0.57lb (260g )

Dimensions: 5.27 x 3.82 x 1.22 inch (134 x 97 x 31 mm)

Warranty: 1 year

What's in the Box:

1 x Battery Shunt 300

1 x Quick Guide

3 x Mounting Screws

2 x B Wires (1 m) (22 AWG)

1 x Temperature Sensor (1.5 m)

1 x User Manual
