Product Details
＋

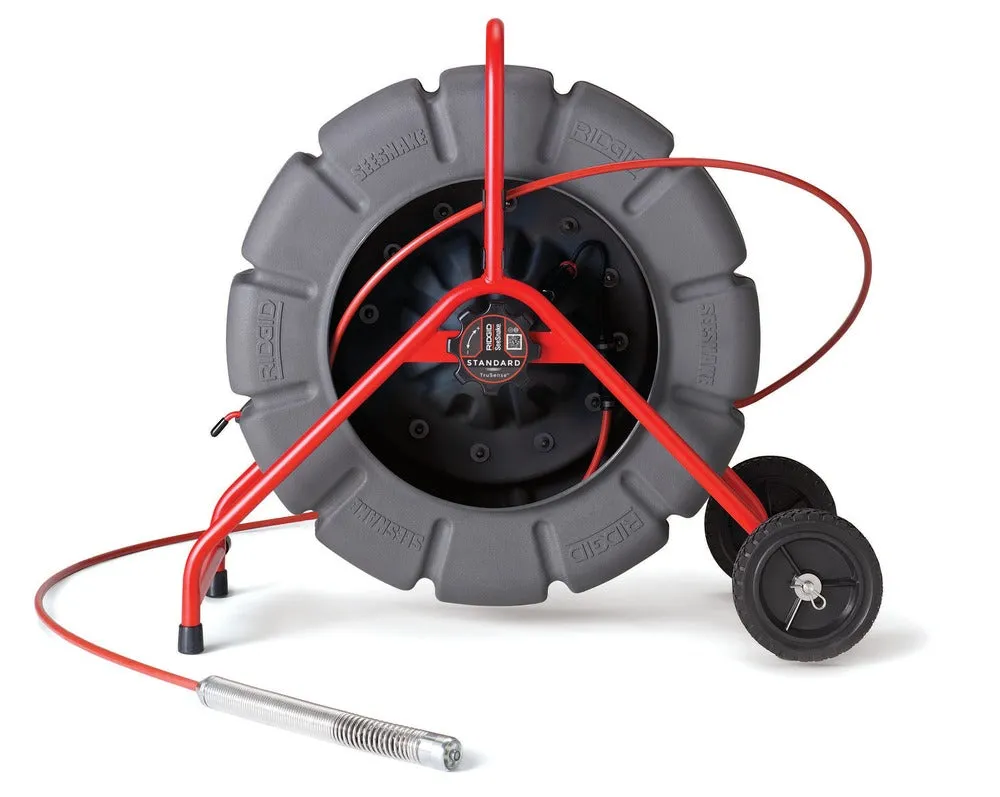

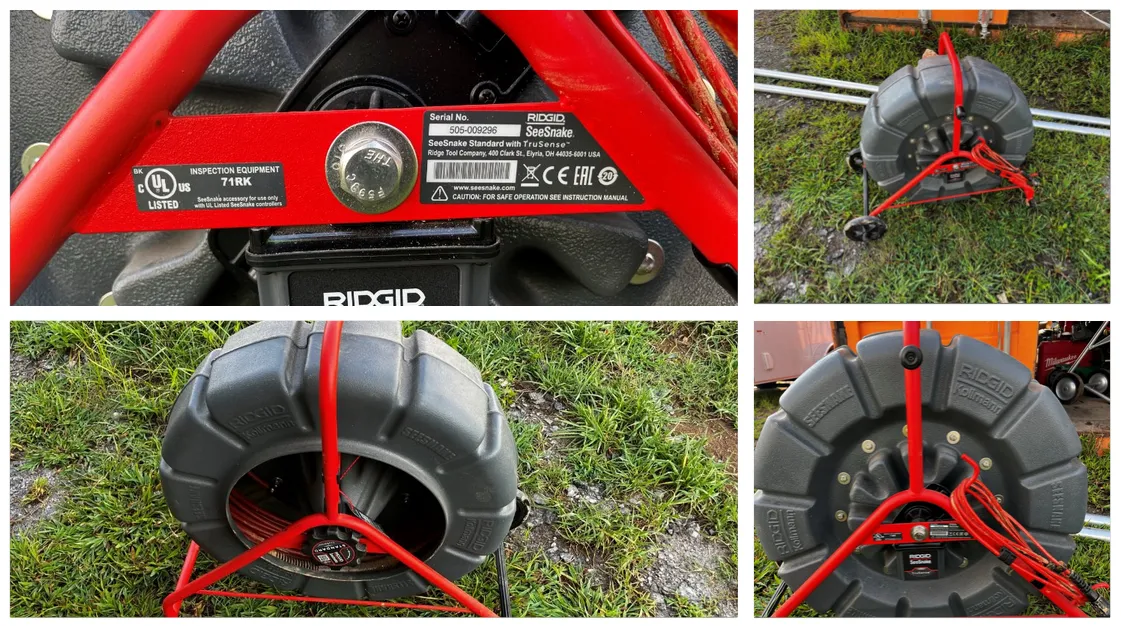

Ridgid 63613 SeeSnake Standard Camera Reel - New Surplus
Reliable and Rugged Camera Reel with TruSense™ Technology
The Ridgid 63613 SeeSnake Standard camera reel offers unmatched reliability and performance in a ruggedized package. This reel has the stiffest push cable and is available in lengths up to 325' (99 m) – making it perfect for long runs, particularly in larger pipes with fewer turns.

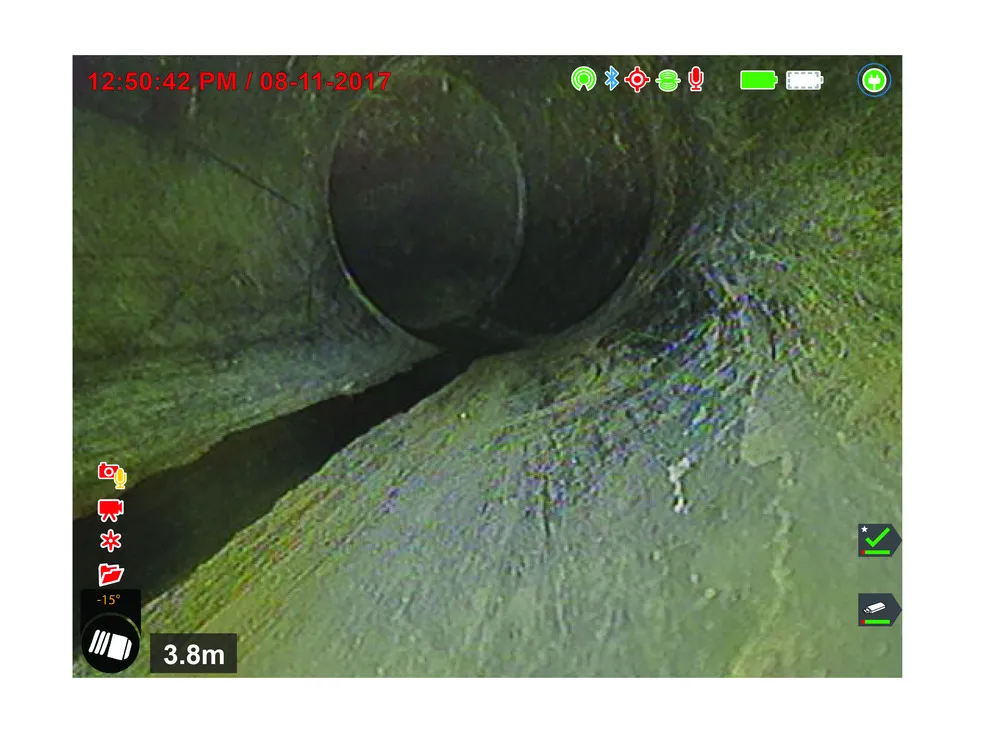

Features include rugged, high-intensity LEDs for exceptional viewing and long life, a self-leveling camera head to keep the image upright, and a powerful FleXmitter® sonde with long range that preserves the camera's ability to make turns. The high dynamic range (HDR) image sensor offers bright, clear in-pipe imaging in difficult lighting conditions, and TiltSense displays the camera's pitch in a pipe on a connected SeeSnake CSx series monitor.
Specifications
| Specification | Details |
|---|---|
| Camera Head | 35 mm TruSense™ fixed or self-leveling |
| Light Source | High-Intensity LED |
| Push Cable Length | 200' (61 m) |
| Push Cable Diameter | 0.44" (11.2 mm) |
| Push Cable Minimum Bend Radius | 4.5" (114 mm) |
| Line Capacity | 2" to 12" (51 mm to 305 mm) |
| 512 Hz Sonde | High-power FleXmitter® |
| Dimensions (LxWxH) | 32.7" x 17.7" x 29.8" (830 mm x 450 mm x 756 mm) |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Storage Temperature | 14°F to 158°F (-10°C to 70°C) |
