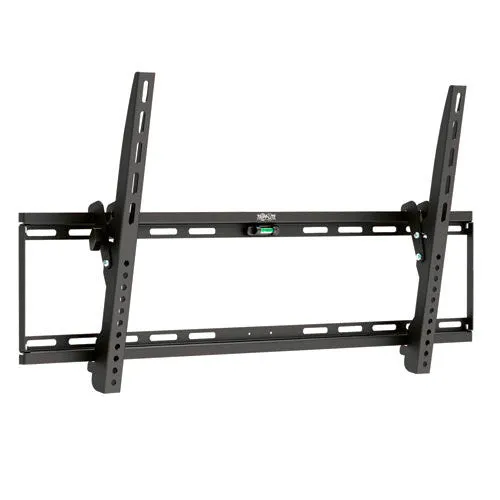

Tripp Lite?s VESA-compliant DWT3763X Tilt Flat-Screen Wall Mount?s low-profile design features an open frame for easy wall access and optimal display positioning flexibility. With tilt adjustment for improved viewing angles in applications where the audience is located below the display, it packs a lot of functionality into an unobtrusive frame. It can also free up valuable space in your workstation by allowing you to effortlessly reposition your display at any time, even after installation. Its durable, all-metal construction with scratch-resistant, powder-coat finish supports weights of up to 200 lbs. and fits most 37- to 70-inch flat-panel displays. It comes with all necessary mounting hardware and features horizontal adjustment to compensate for off-center wall studs. A built-in bubble level enables accurate display leveling. For peace of mind, the DWT3763X comes backed by a 5-year warranty.
Features:
- Low-profile mounting keeps unit out of sight for sleek, professional appearance
- Fits most flat-panel displays from 37? to 70"
- Open frame for easy wall access
- Tilt adjustment improves viewing angles in applications where the audience is below the display
- Horizontal adjustment compensates for off-center wall studs
- Wide range of motion with -10? to 0? tilt capability
- Equipped with a bubble level for accurate display leveling
- Supports up to 200 lbs
- 5 year warranty
Specifications:
- Display Mount Type Standard
- Mounting Location Wall
- PHYSICAL
- Unit weight (lbs) 5.94
- Unit weight (kg) 2.69
- Color Black
- Display Size (in.) 32 - 70
- Display Size (cm) 81.28 - 177.80
- VESA Pattern (mm) 600x400
- Motion Tilt
- Degrees of Motion -10/ 0
- Distance from Wall (in.) 1.77
- Distance from Wall (cm) 4.5
- Maximum Weight Capacity (lbs) 165
- Maximum Weight Capacity (kg) 90.72
- FEATURES/SPECIFICATIONS
- Tools Necessary Yes
- Cord Management No
- Product Warranty Period (U.S. & Canada) 5-year limited warranty
