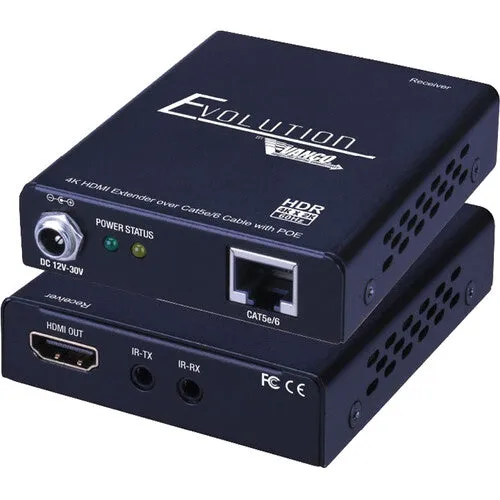

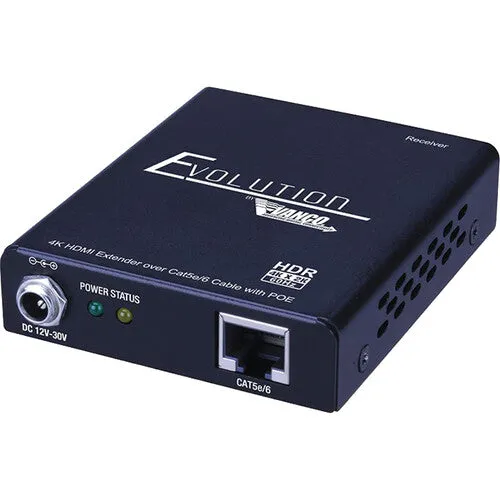

Evolution EV4K HDMI Extender Overview

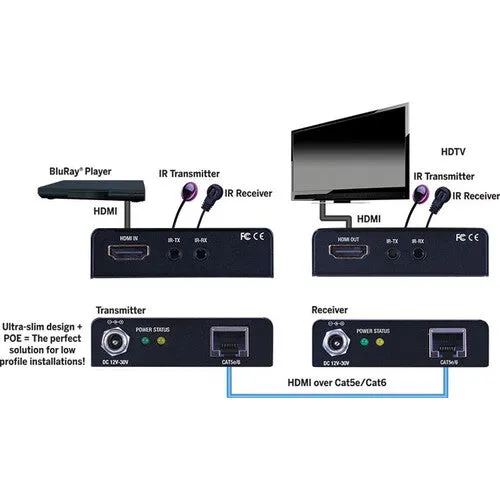

The Evolution EV4K HDMI Extender enables seamless extension of a UHD 4K60 4:4:4 HDMI signal up to 164 feet, or a UHD 4K30 4:4:4/HDR signal up to 130 feet, over a single Cat 5e/6 cable. One unit connects to a power supply, while the other is powered via PoE. The compact design also supports bidirectional IR, allowing control from either the source or display. No manual EDID or EQ adjustments are required, as the transmitter and receiver automatically adjust for optimal compatibility and signal gain.

Note: To prevent potential video signal issues, it may be necessary to deactivate HDMI UHD Deep Color mode on some LG displays, or Input Signal Plus on certain Samsung models.

Key Features:

• Supports UHD 4K, 1080p, 1080i, 720p, 480p, and 480i resolutions
• Wideband IR frequency range from 20 to 60 kHz
• Auto EDID and EQ management for easy plug-and-play installation
• HDR10 support
• HDCP 2.2 compliance
• Supports uncompressed 7.1-channel audio, DTS-HD, and Dolby TrueHD
