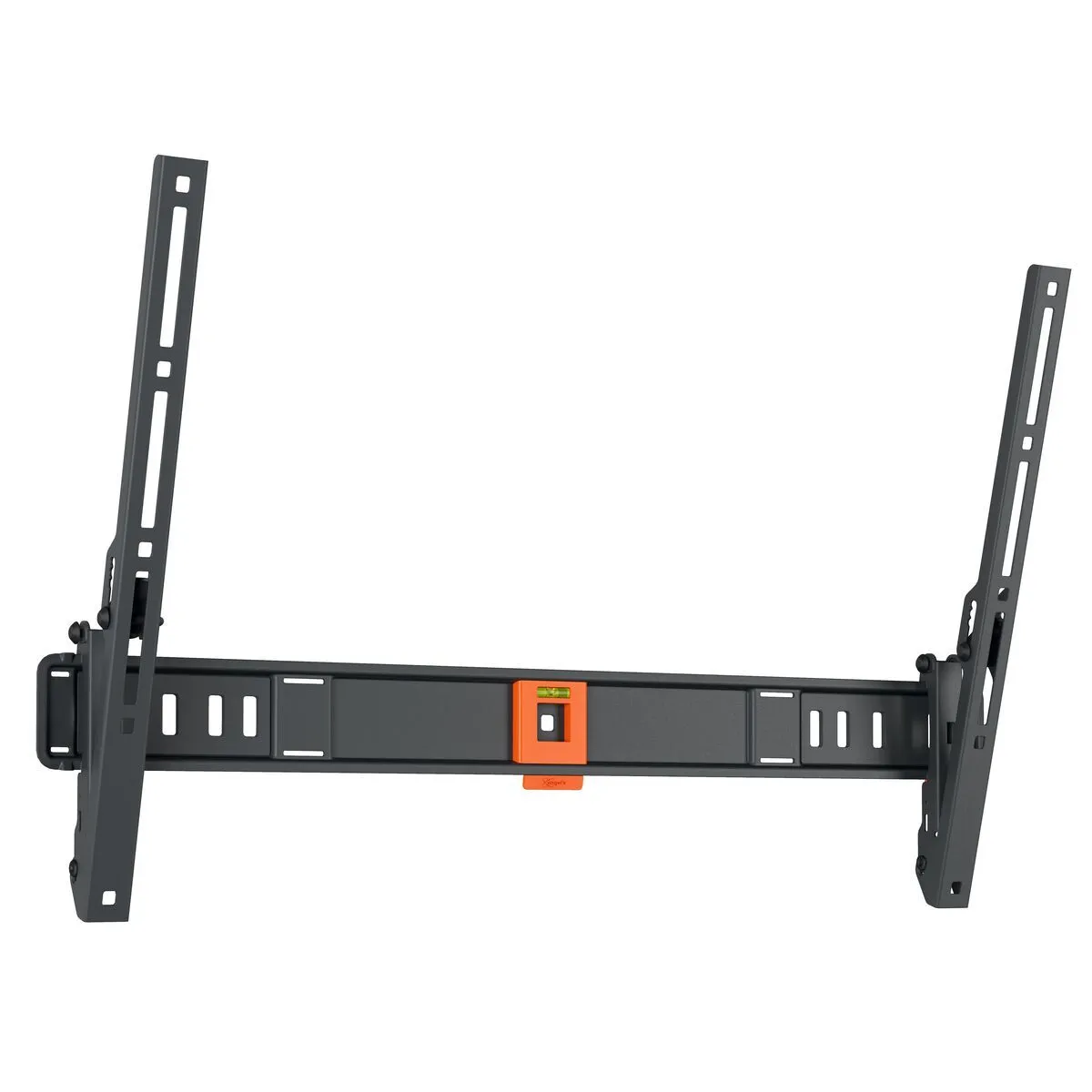

Vogels TVM 1615 Tilting TV Wall Mount
Tilting TV wall mount for TVs from 40 to 77 inches

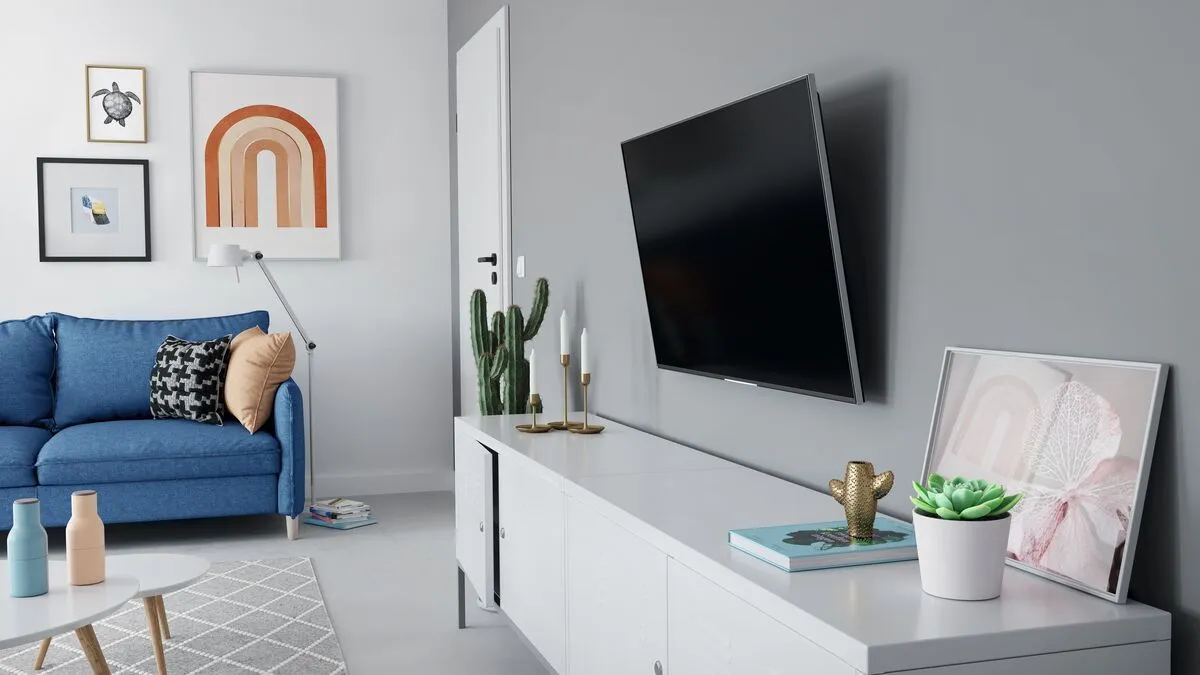

Want to hang your TV a bit higher on the wall and still enjoy watching it? This QUICK Tilt TV wall mount is exactly what you are looking for. You can install it extremely quickly and easily. In no more than 20 minutes, your TV is firmly in place. You can then tilt the TV 5°, 10° or 15° to set the ideal viewing angle. The TV wall mount is suitable for TVs from 40 to 77 inches and weighing up to 35 kg.
Installed in just three steps
Installing a QUICK Tilt TV wall mount is easy thanks to the unique EasyFIX™ system. Installation consists of just three steps. You can mount your TV on the wall in max. 20 minutes.
Mounting materials included
Your QUICK Tilt TV wall mount comes with all the mounting materials you need to get started right away: drilling template, screws and Fischer® DuoPower plugs. We've even thought to include a spirit level. It is built into the QUICK Tilt TV wall mount. This enables you to mount your TV perfectly straight. You can easily mark out the first drilling hole using our free DrillRight app.
Read how to install your QUICK Tilt TV wall mount in the Quick Installation Guide. If you would rather view the detailed manual or the installation video, you can find them online.
Safety first

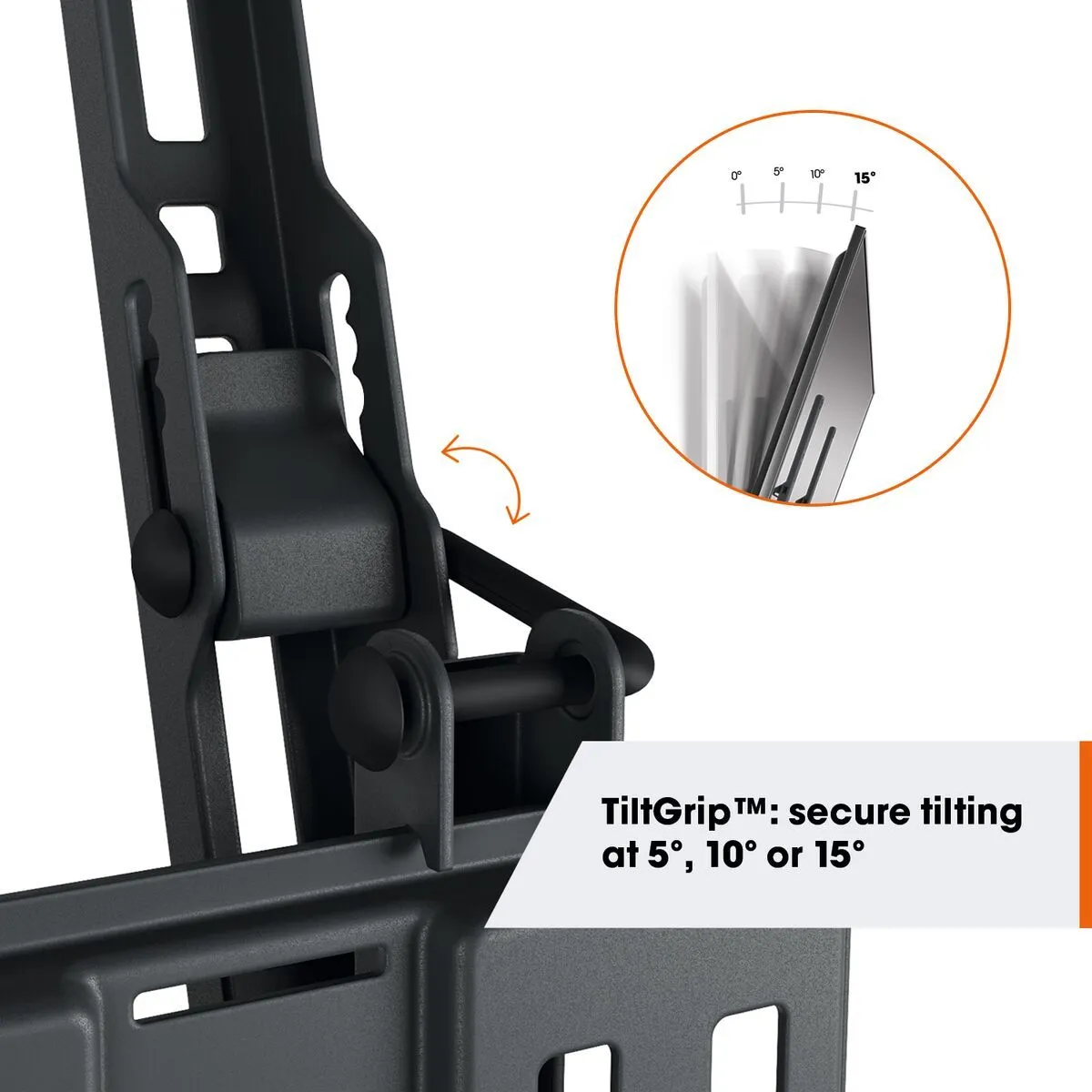

QUICK Tilt TV wall mounts are TÜV-certified and comply with the strictest safety requirements. They are tested at no less than three times their maximum weight capacity. In addition, QUICK Tilt TV wall mounts feature the SoftLock™ system to safely attach your TV to the wall mount. The TiltGrip™ system ensures that the wall mount is securely fixed in any position. The QUICK Tilt wall mount comes with a 5-year warranty.
Consciously designed
The environmental impact of this product is 4,8 kg CO₂ equivalent. At Vogel's, we think it is important to know your product inside out. This allows us to make the best design choices for the next generation of TV mounts. Want more details on the impact of this product? Then take a look at the ecosheet under Downloads.
Specifications:
| EAN single box |
8712285353185 |
| Colour |
Black |
| Min. screen size (inch) | 40 |
| Max. screen size (inch) | 77 |
| Max. weight load (kg) | 75 |
| Maximum tilt |
Tilt up to 15° |

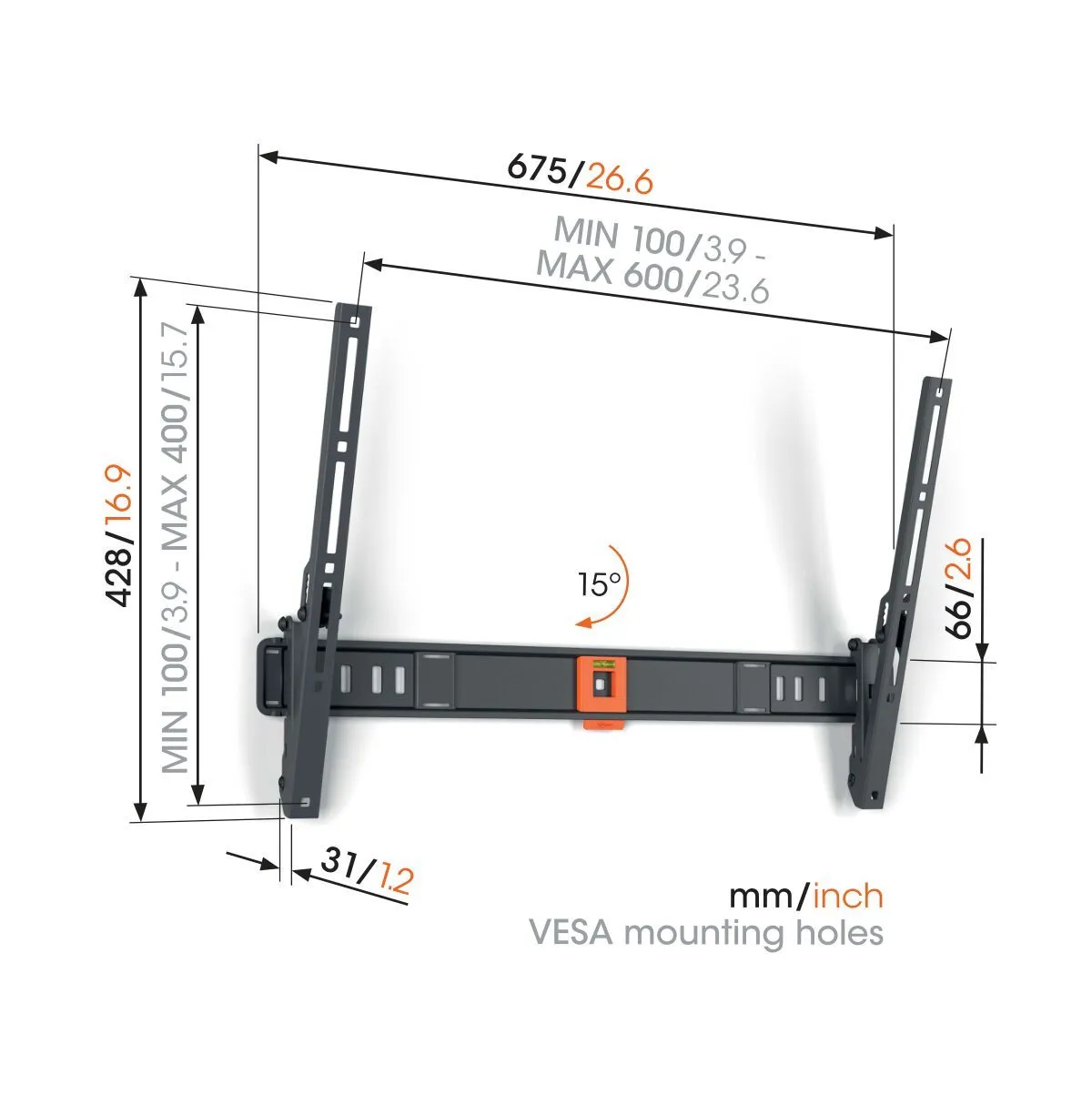

| Hole pattern (VESA) | 100 mm x 100 mm, 100 mm x 200 mm, 200 mm x 100 mm, 200 mm x 200 mm, 200 mm x 300 mm, 300 mm x 200 mm, 300 mm x 300 mm, 400 mm x 200 mm, 400 mm x 300 mm, 400 mm x 400 mm, 500 mm x 200 mm, 500 mm x 300 mm, 500 mm x 400 mm, 600 mm x 200 mm, 600 mm x 300 mm, 600 mm x 400 mm |
| Min. distance to the wall (mm) | 31 |
| What's in the box | Wall mount, Wall mounting kit with fischer® Duo Power plugs, TV fasteners kit, Spirit level, Quick Installation Guide, DrillRight app, Drilling template |
| Product category | Tilting TV Wall Mount |
| Product Series |
QUICK |
| Guarantee | 5 years |
